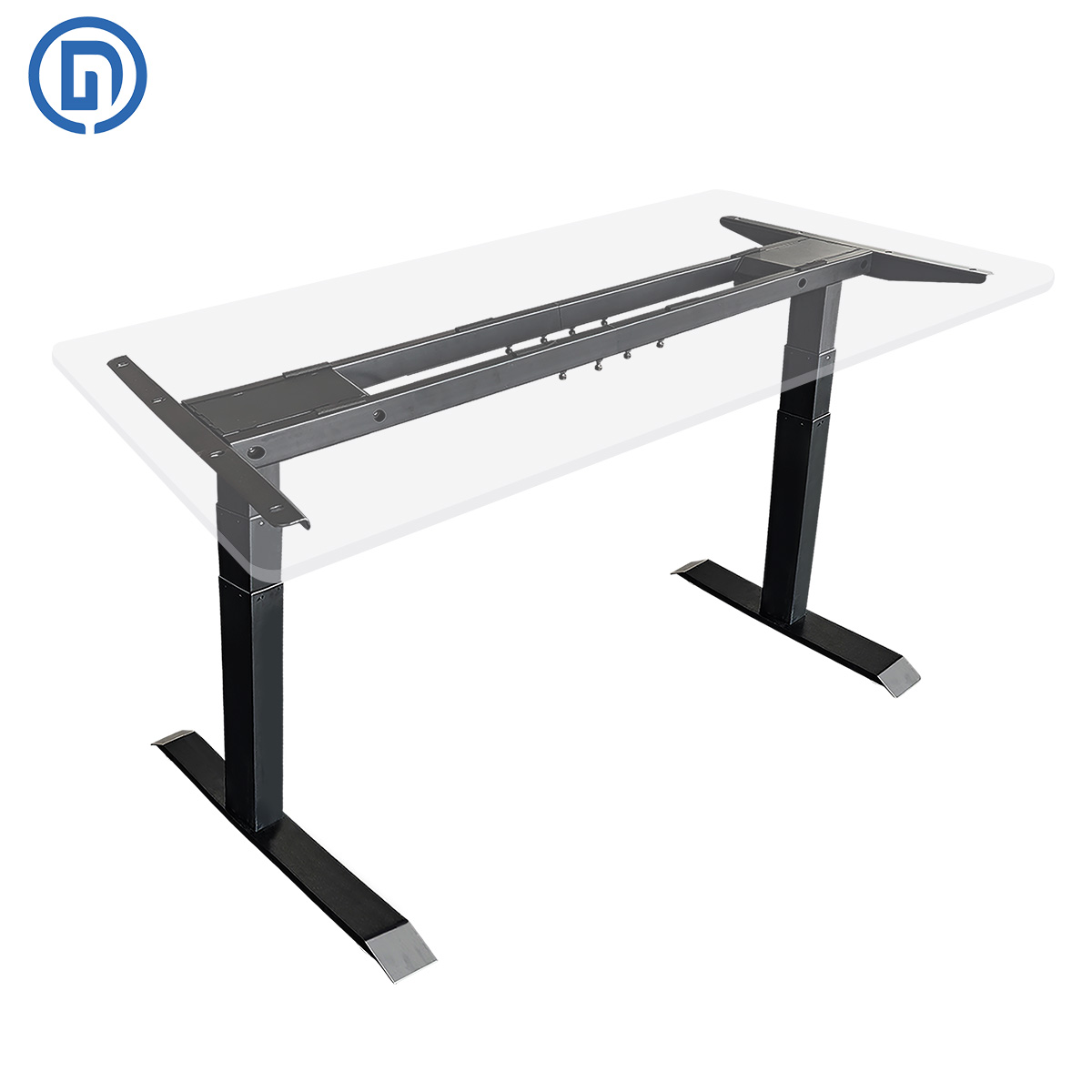

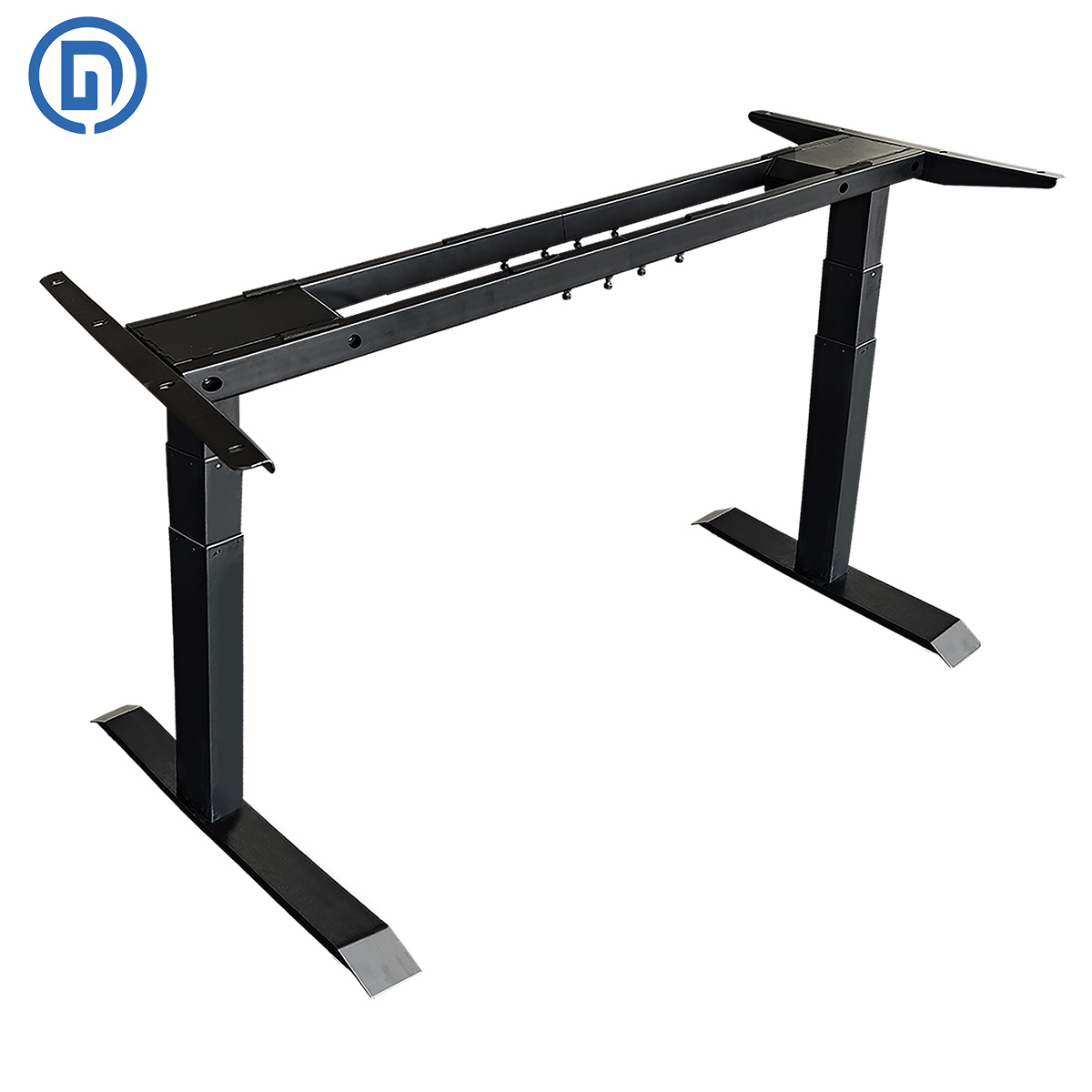

ZY-03 Dual Motor Dual Beam Electric Standing Desk Frame (3-Section Lifting,Infinite Adjustable Extend Beam)

Create your own mobile workstation with the FY-03 Dual-Motor Dual-Beam Desk Stand from NANDI, and strike the perfect balance between sitting and standing!

This sturdy frame features a dual-motor lift system, customisable manual control settings and adjustable feet for smooth transitions.
The FY-03 desk frame utilises a dual-beam construction and sturdy leg supports to support up to 120 kg (265 lbs) of desk weight, ensuring the desk's safety and longevity. The dual motors operate quietly at less than 50 decibels, eliminating annoying noise.
With a lifting speed of 30 mm/s, the desk can be ready to use again within seconds of standing up.

Click the "Inquiry" button above to view the buyer's guide.

  • ZY-03

  • NANDI

Frame Color:
Installation Type of Desk Legs:
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description


Maintaining healthy work habits requires an ergonomic standing desk frame.

Designed by NANDI specifically for office workers, the ZY-03 Dual-Motor, Dual-Beam Electric Standing Desk Frame (3-Section Formal Lift Legs) is an ergonomic workstation. It is a high-end, high-performance office solution. Its sturdy frame firmly supports your desk and devices while allowing you to stand up and think independently whenever you want!

All the necessary hardware and simple assembly instructions are included.


Why Choose NANDI ZY-03 3-Stage Lifting Dual Motor Dual Beam Electric Standing Desk Frame?

1. Wider Height Adjustment Range, Upgraded Comfort and Flexibility:

This upgraded ZY-03 standing desk frame features three-stage legs with a wider height adjustment range of 28.35 inches to 48.03 inches. Compared to two-stage legs, this provides greater flexibility and smoother height adjustment. It also features four customizable height settings for easy transitions between sitting and standing, further enhancing comfort and productivity.

2. Powerful and Quiet Dual Motor System:

This desk frame is equipped with an advanced brushless motor that has been tested for 100,000 full-load lifts, ensuring long-term reliable performance. It also provides ultra-smooth height adjustment. Our advanced dual motor system operates at less than 50 decibels, delivering ultra-smooth height adjustment. Focus on your work without being disturbed by noise.

3. Choose the Desk Size That Fits You:

The ZY-03 electric standing desk features adjustable legs and a horizontal crossbar that extends and retracts from 43.31 inches to 62.99 inches, with a fixed width of 19.69 inches. You can choose from full-length desktops ranging from 1200mm to 1600mm, allowing the standing desk frame to seamlessly blend in with your office design or furniture.

4. Intelligent and User-Friendly Control System:

The ZY-03 electric height-adjustable desk legs feature an intuitive control panel for quick height adjustment. It also features four memory presets for conveniently saving frequently used height settings. The electric standing desk frame operates at less than 50 decibels, ensuring a quiet and distraction-free work environment. Anti-collision technology helps prevent damage to the desk or furniture during operation.

5. Sturdy and Durable:

The ZY-03 height-adjustable electric standing desk frame utilizes a dual-beam construction, which is more stable and sturdy than a single-beam construction, resulting in a longer lifespan. Made of industrial-grade, heavy-duty cold-rolled steel, it can safely support up to 265 pounds (approximately 120 kg). Furthermore, the three-section uprights feature a forward-aligned, inline structure, making the desk even more sturdy and durable. It can accommodate dual monitors, a PC, and office equipment.


6. Comfort and Efficiency:

Switching between sitting and standing positions throughout the workday helps people improve their posture, enhance comfort, and increase productivity.


Specification

Product NameDesk Frame
ModelZY-03
Number of motors2 motor
BeamInfinite Width Adjustment
Beam Length1100-1600mm(43.31"-62.99")
Adjustable Height Range620mm-1270 mm (24.41"-50")
Side Beam Length500mm(19.69")
Feet Length600mm (23.62")
Column Type3 Stage Lifting Height Adjustable, Inline
Inner Column Diameter of Desk Leg40mmX70mm
Middle Column Diameter of Desk Leg45mmX70mm
Outer Column Diameter of Desk Leg50mmX80mm
Column MaterialCold-rolled steel
Load≤120 kg(264.55lb)
Noise≤50 db
ColorWhite / Black
Speed20mm/s
Stroke450mm
VoltageAC 110-240 V
Output29V/ 1.8A
StyleMorden
Room TypeOffice, Home Office, Study Room, Living Room
