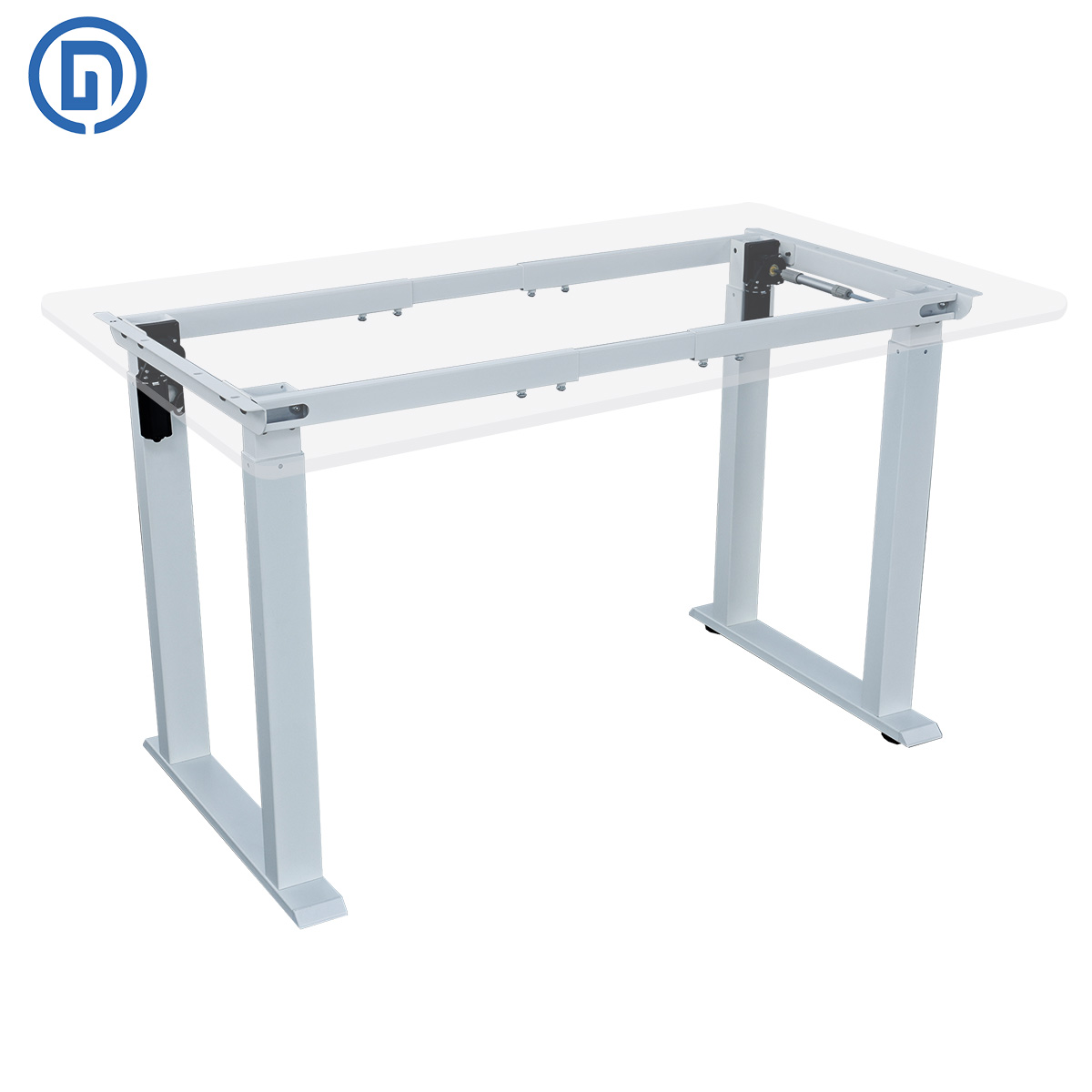

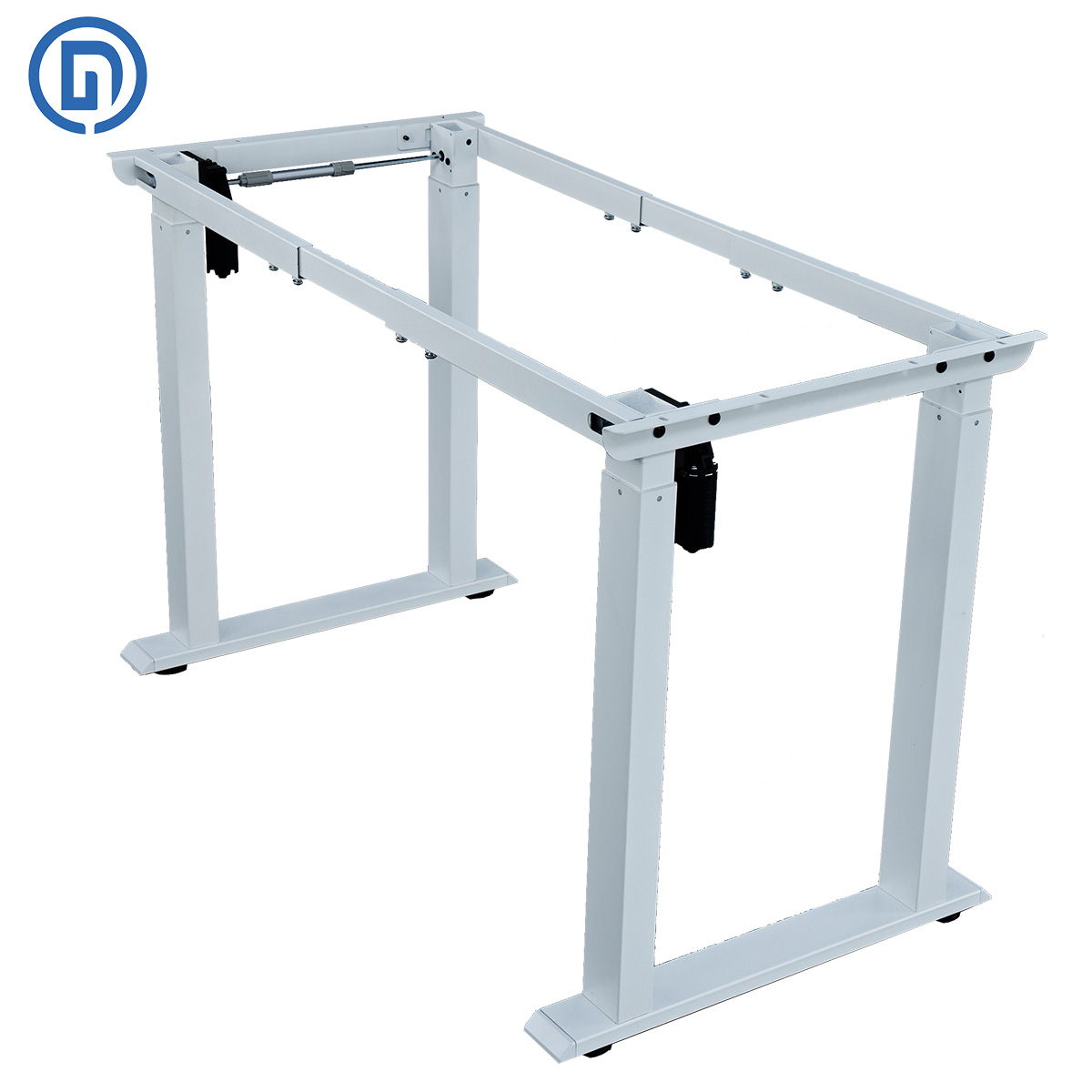

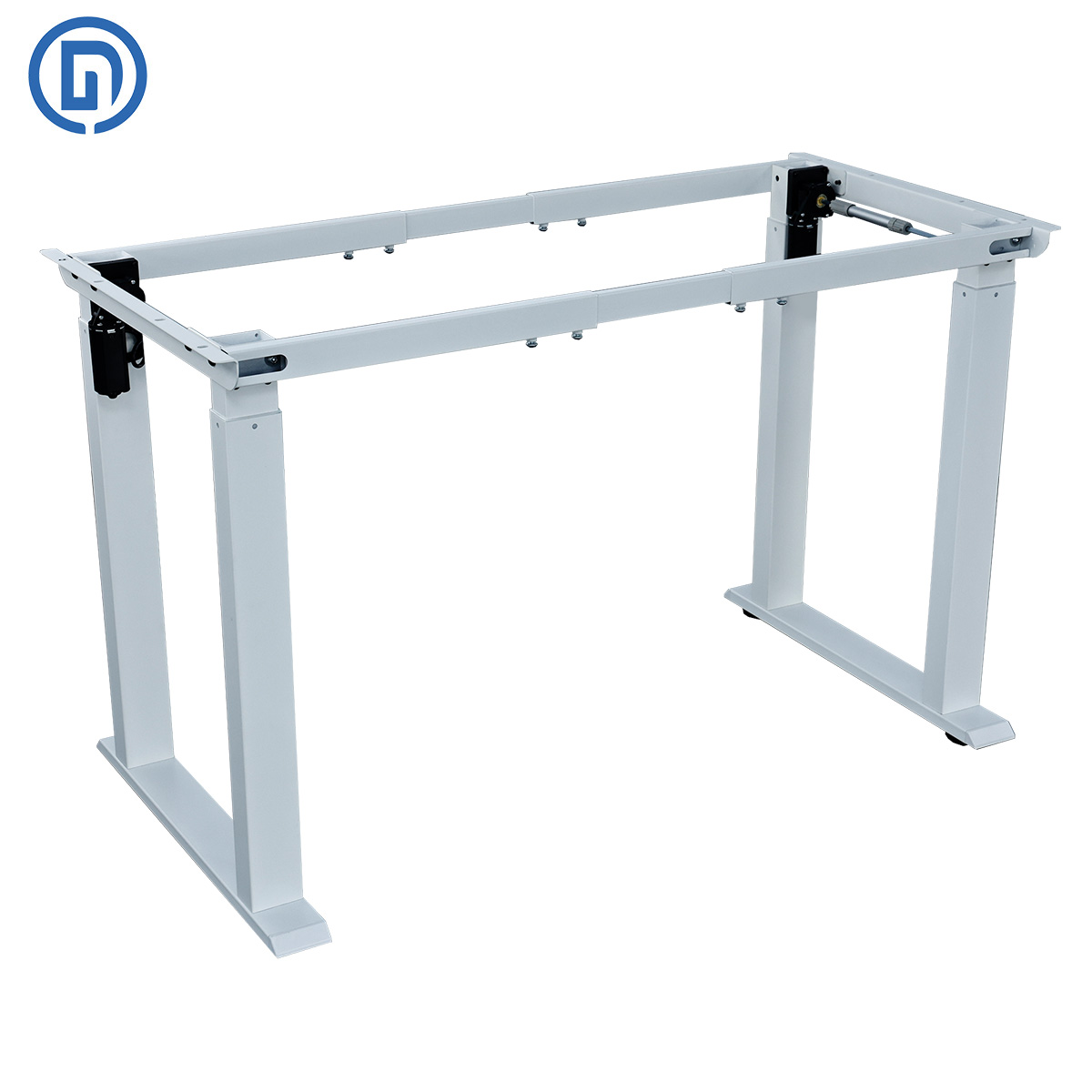

FY-03 Dual Motor 4-Legs Electric Standing Desk Frame

The FY-03 is a simple electric vertical height-adjustable desk frame with a weight capacity of 80 kg (176 lb). Its four-column design, equipped with two high-performance brushless motors, provides exceptional stability and powerful adjustment capabilities—no more wobble, just smooth and steady movement. Furthermore, its solid steel construction makes it durable and sturdy. If you're looking for a heavy-duty model, this is the ideal choice. Furthermore, its wide width adjustment allows for easy integration with desks of varying sizes to meet a variety of needs.

Click the “Inquiry”button above to view the buyer's guide.

  • ZY-03

  • NANDI

Frame Color:
Installation Type of Desk Legs:
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

For those who need a robust desk capable of withstanding heavy workloads, the NANDI FY-03 Dual-Motor Electric Four-Post Desk Frame is a great choice.


This four-leg electric standing desk features four lifting columns for exceptional stability and strength. It's ideal for professionals who require maximum weight support and stability, or those working with heavy equipment, such as engineers or content creators with multiple monitors and devices. Furthermore, it's customizable with a variety of finishes to perfectly match your work style, making it the best four-leg standing desk frame available.


Why Choose NANDI FY-03 Dual Motor 4-Legs Quad Electric Standing Desk Frame?

1. Wide Width and Height Adjustment Range:

Adjustable from 23.6 inches to 49.2 inches, the frame accommodates a wide range of users, providing ergonomic comfort for both sitting and standing positions.

2. High Load Capacity:

With a load capacity of up to 661 lbs, it's ideal for heavy desks, dual-monitor stands, and creative or industrial workstations.

3. Fast Adjustment Speed:

With a height adjustment speed of up to 1.4 inches per second, it allows for quick and efficient movement with minimal disruption. 4. Flexible Desk Fit:

Compatible with desks ranging from 27.95-45.67 inches in length and up to 28 inches in depth, it offers a wide range of customization options.

5. Ultra-Quiet Operation:

Operating at just 50 decibels, it's ideal for shared workspaces and distraction-free environments.

6. Heavy-Duty Steel Frame:

Constructed of reinforced powder-coated steel with a smooth matte finish, it offers durability and a modern look.

7. Smart Height Control:

Includes a digital control panel with four memory presets, allowing you to adjust heights with a single touch.


Specification

Product NameDesk Frame
ModelFY-03
Number of motors2 motor
BeamInfinite Width Adjustment
Beam Length950-1450mm(37.4"-57.9")
Adjustable Height Range710mm-1160 mm (27.95"-45.67")
Side Beam Length550mm(21.65")
Feet Length600mm (23.62")
Column Type2 Stage Lifting Height Adjustable, Inline
Inner Column Diameter of Desk Leg40mmX60mm
Outer Column Diameter of Desk Leg45mmX65mm
Column MaterialCold-rolled steel
Load≤80kg(176.37lb)
Noise≤50 db
ColorWhite / Black
Speed12mm/s
Stroke450mm
VoltageAC 110-240 V
Output29V/ 1A
StyleMinimalist
Room TypeOffice, Home Office, Study Room, Living Room
