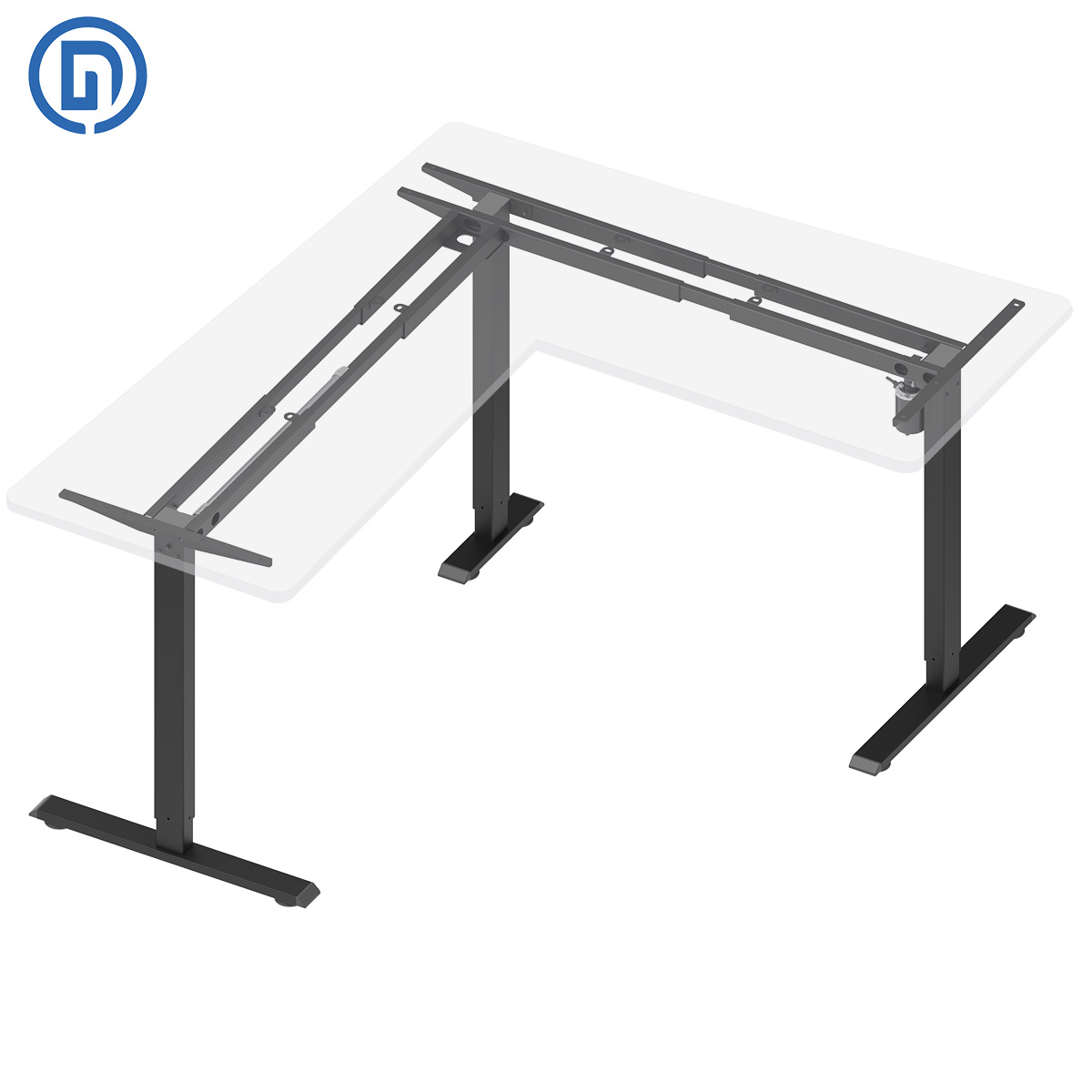

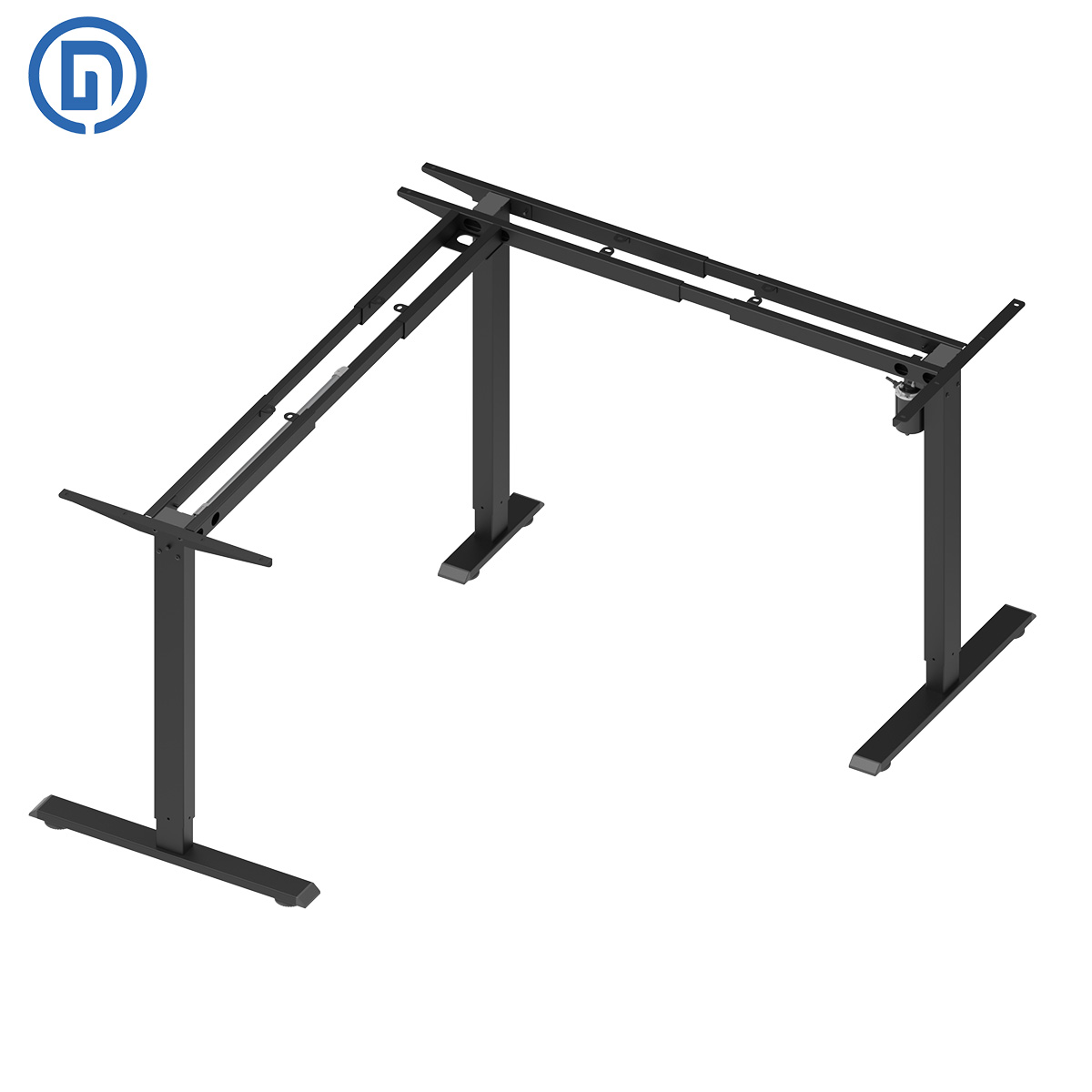

Single Motor L Shape Electric Corner Standing Desk Frame(Black)

When you need more workspace, the height-adjustable sit-stand L-shaped corner desk frame from NANDI can handle even the heaviest desk setups.
This professional-grade, ergonomic electric lifting desk frame features electric motors, two-stage legs, and a programmable controller.
Designed to accommodate our largest L-shaped lifting corner desks, it can easily support up to 120 kg (265 lbs).
Click the "Inquiry" button above to view the buyer's guide.

  • NANDI

Frame Color:
Installation Type of Desk Legs:
Availability:


Boost your productivity and workplace health with an ergonomic desk that allows you to easily adjust the height and break the monotony of seated office work.


Upgrade to this large, professional-grade, L-shaped sit-stand desk frame that wraps around your workspace, providing more desk space within easy reach. Make efficient use of your corner space or divide your workspace into functional areas by enclosing your work area with your desk.

L-(2)

Why Choose NANDI FY-03 Dual Motor 4-Legs Quad Electric Standing Desk Frame?

1. Sturdy Corner Desk Frame:

Get a larger sit-stand desk that wraps around you, providing more desk space and maximizing space utilization. The all-steel construction and sturdy tripod system support large corner desks weighing up to 265 lb (120 kg).

2. Single-Motor Lift System Height Adjustment:

A powerful single motor utilizes a fast, powerful, and quiet brushless motor automatic lift system for raising and lowering. Easily switch from sitting to standing with the touch of a button. The robust multi-motor lift system boasts a lifting speed of 2 cm per second, providing a smooth and quiet height transition for your workstation. Easily transition between sitting and standing positions.

3. Telescopic Adjustable Beam Width: The frame's L-shaped beam expands and adjusts to accommodate a variety of desk lengths and widths.

4. Easy-to-Control Operation Panel:

Four memory preset heights are also freely adjustable, allowing you to easily achieve the ideal height for better ergonomics and the most comfortable workstation at the touch of a button. Finding your ideal height is a breeze.


Enjoy the pleasure of fast thinking and feel more energized and refreshed while working!


Product Name Desk Frame
Model L Shaped
Number of motors 1 motor
Beam Infinite Width Adjustment
Beam1 Length 840-1230mm(33.07"-48.43")
Beam2 Length 1090-1480 mm(42.91"-58.25)
Adjustable Height Range 735mm-1185mm (28.94"-46.65")
Side Beam Length 495mm(19.49")
Feet Length 600mm (23.62")
Column Type 2-Section Lifting Height Adjustable, Inverted Inline Column
Inner Column Diameter of Desk Leg 40mmX60mm
Outer Column Diameter of Desk Leg 45mmX65mm
Column Material Cold-rolled steel
Load ≤120 kg(264.55lb)
Noise ≤50 db
Color White / Black
Speed 20mm/s
Stroke 450mm
Voltage AC 110-240 V
Output 29V/ 2A
Style Space Saving
Room Type Office, Home Office, Study Room, Living Room
