FY-02
NANDI
Frame Color: | |
---|---|
Installation Type of Desk Legs: | |
Availability: | |
Product Description

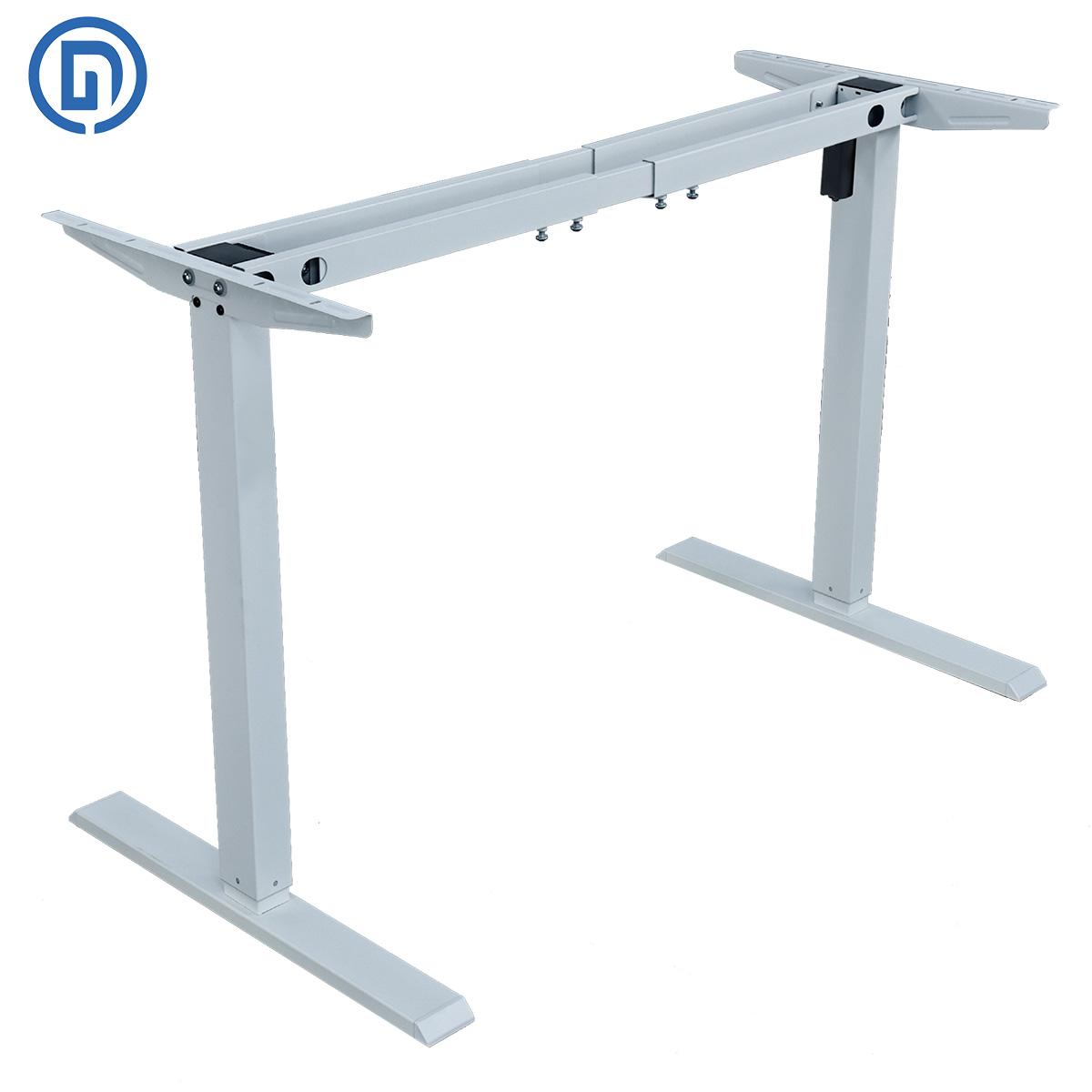

The FY-02 Single-Motor Dual-Beam Electric Standing Desk Frame (Two-Stage Inverted) is an affordable electric height-adjustable desk solution that provides a more comfortable, healthy, and productive workspace for both home and office users. Featuring a sturdy single-motor lift system with a height adjustment range of 710 mm to 1160 mm, this desk frame allows users to seamlessly transition between sitting and standing positions for a more comfortable working experience and improved productivity.

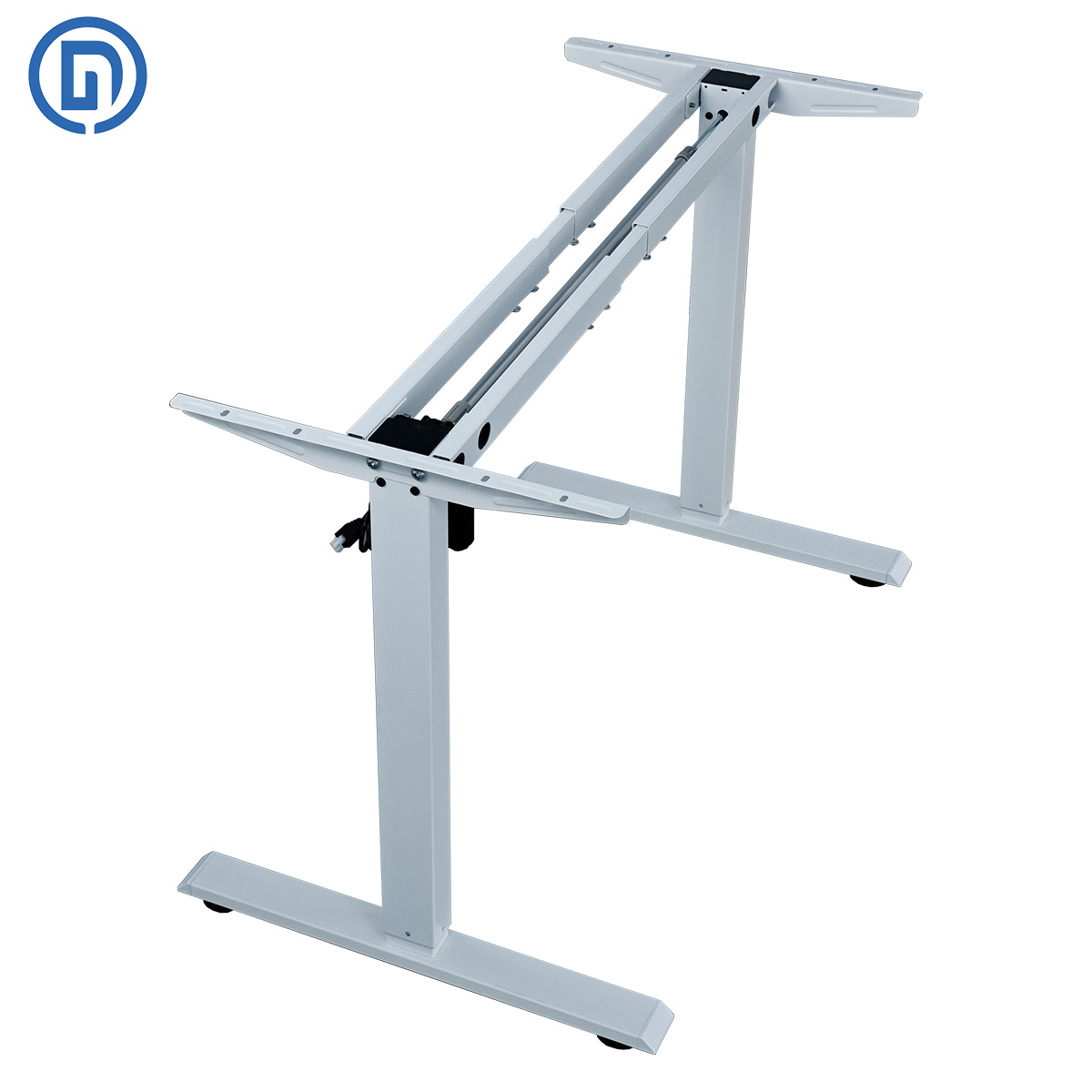

The two-stage inverted leg design balances space efficiency with cost-effectiveness. The retractable beam, with its infinitely adjustable width, is ideal for offices, home workstations, and study areas of all sizes.
Our budget-friendly electric standing desk frame features a single motor for ultra-smooth height adjustment (27.95" - 45.67"), perfect for sit-stand and alternate work.

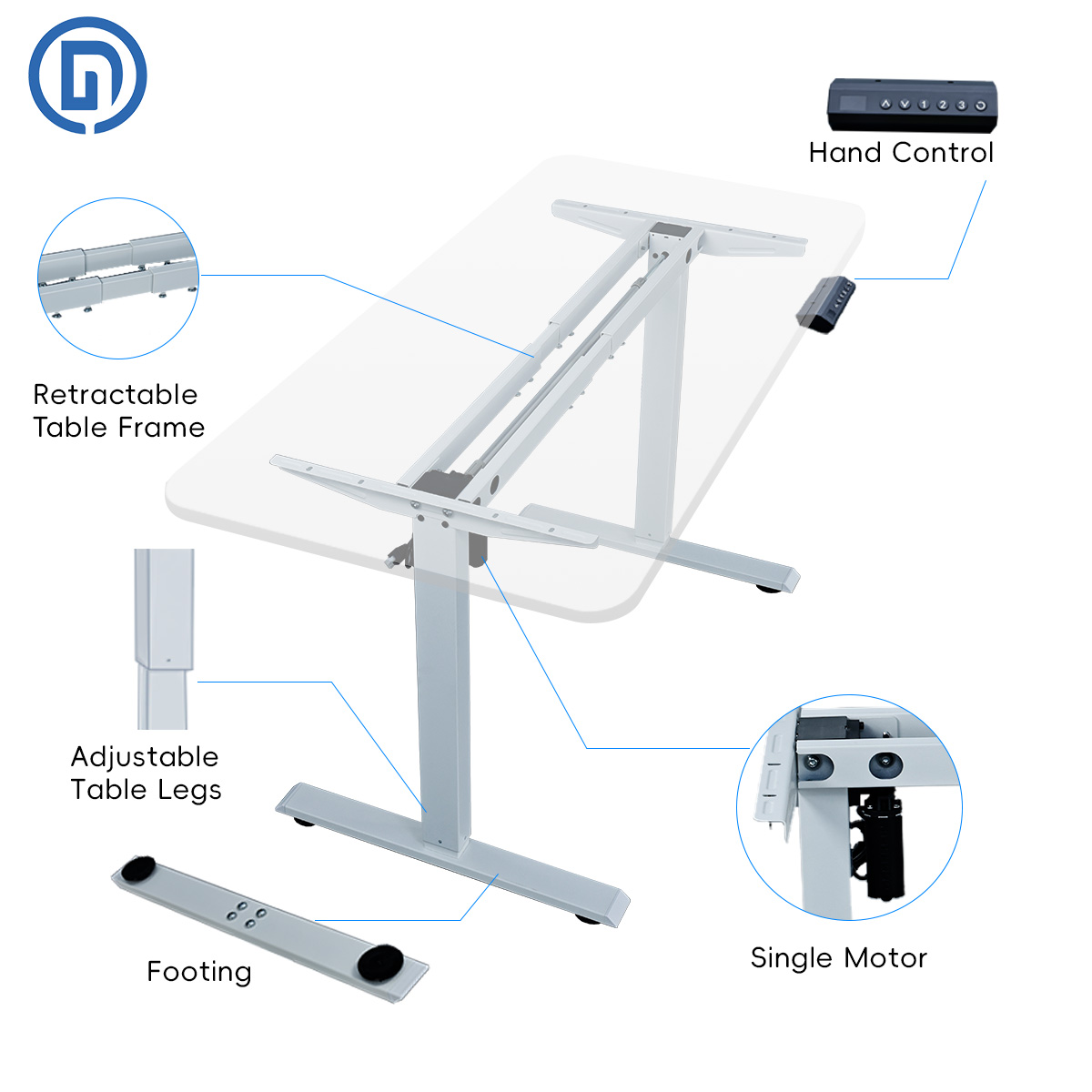

Dual-beam construction for extended life.
[Smart Memory Controller] Digital display, infinite up and down height adjustment, and four programmable preset memory height positions.
Includes all hardware and clear installation instructions for quick and easy installation. Pre-drilled adjustable legs adapt to most desks without modification. Durable powder-coated finish resists scratches at home or at work.

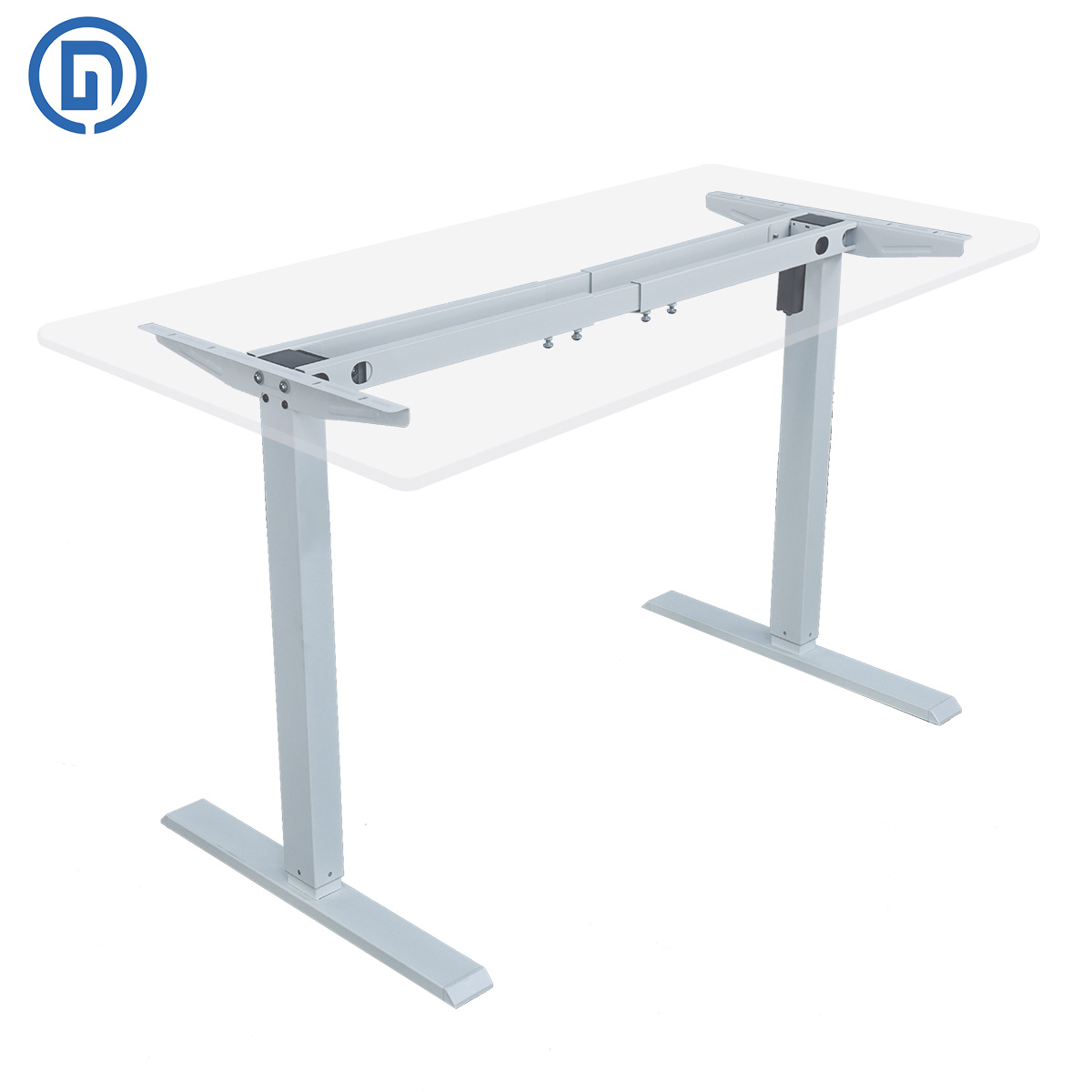

Fits most desks (47.24" - 62.99" long) and features pre-drilled mounting holes for easy installation. The space-saving design provides ample legroom, and the included cable tray keeps cables organized underneath your sit-stand desk.

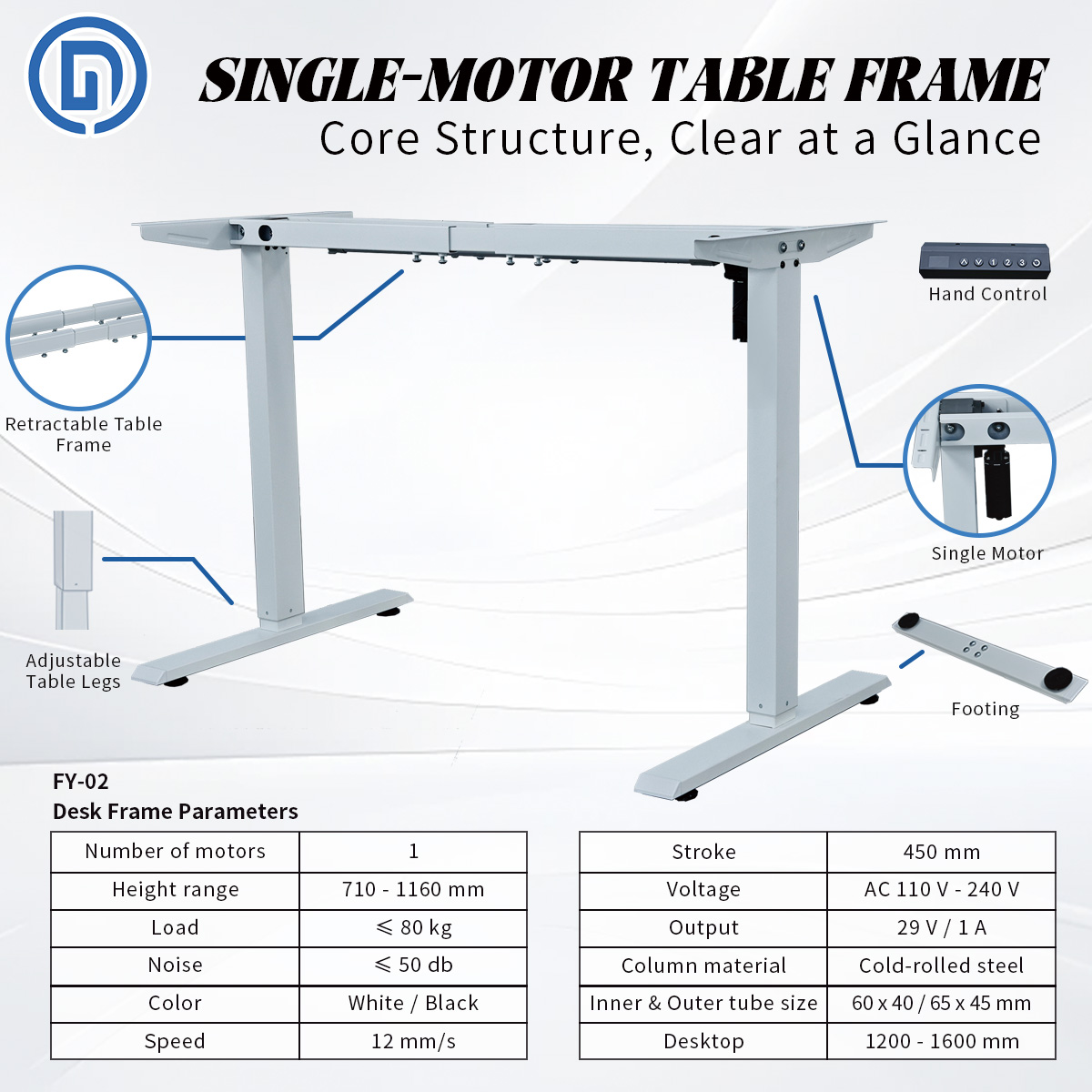

Specification
Product Name | Desk Frame |
Model | FY-02 |
Number of motors | 1 motor |
Beam | Infinite Width Adjustment |
Beam Length | 950-1450mm(37.4"-57.09") |
Adjustable Height Range | 710mm-1160 mm (27.95"-45.67") |
Side Beam Length | 480mm(18.9") |
Feet Length | 600mm (23.62") |
Column Type | 2-Section Lifting Height Adjustable, Inverted |
Inner Column Diameter of Desk Leg | 40mmX60mm |
Outer Column Diameter of Desk Leg | 45mmX65mm |
Column Material | Cold-rolled steel |
Load | ≤80 kg |
Noise | ≤50 db |
Color | White / Black |
Speed | 12mm/s |
Stroke | 450mm |
Voltage | AC 110-240 V |
Output | 29V/ 1A |
Style | Morden |
Room Type | Office, Home Office, Study Room, Living Room |
