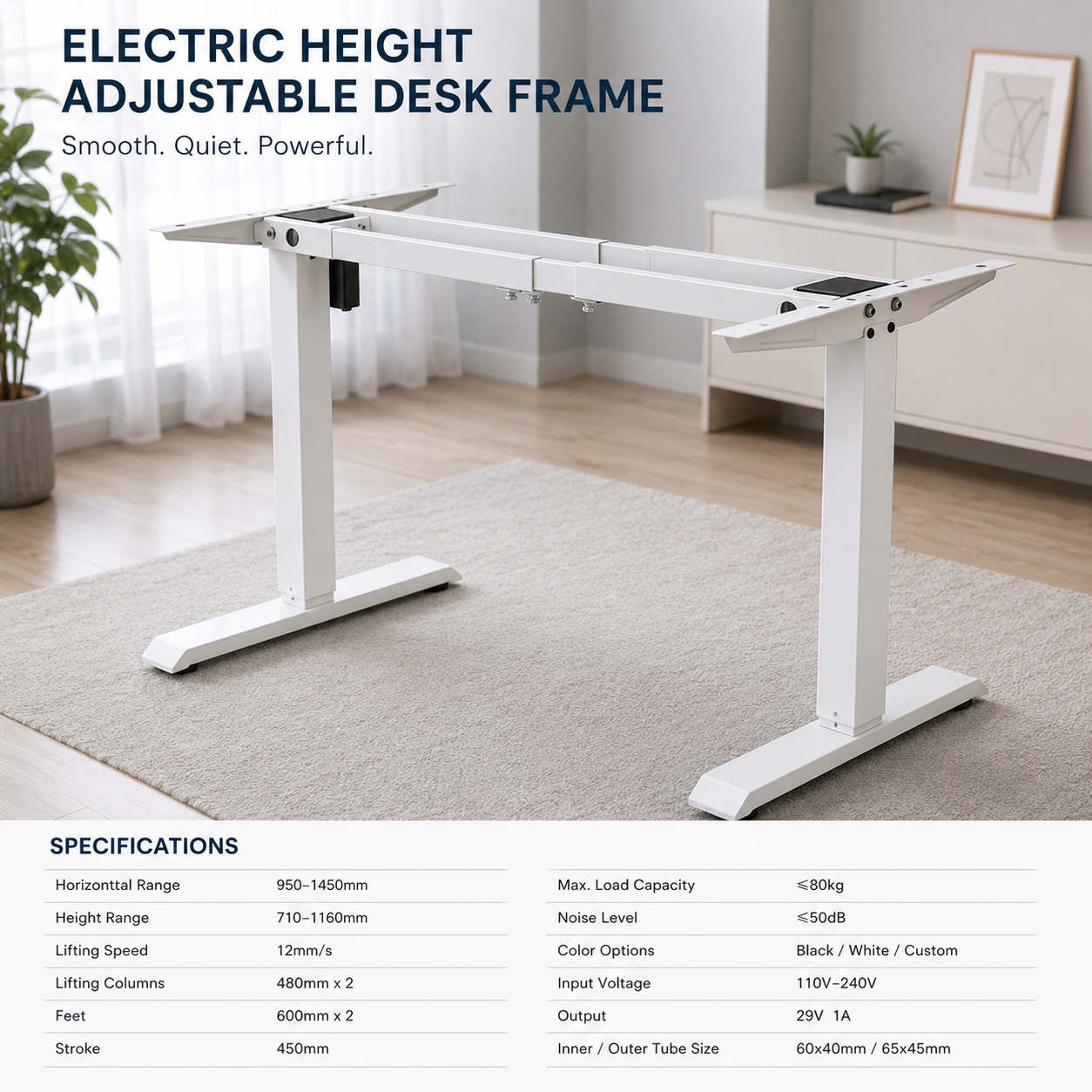

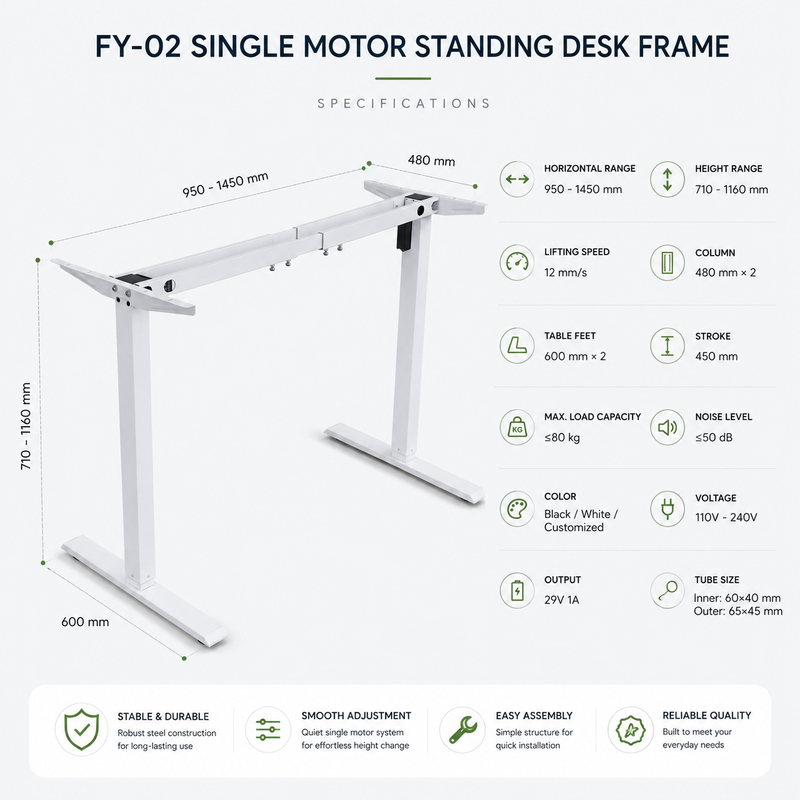

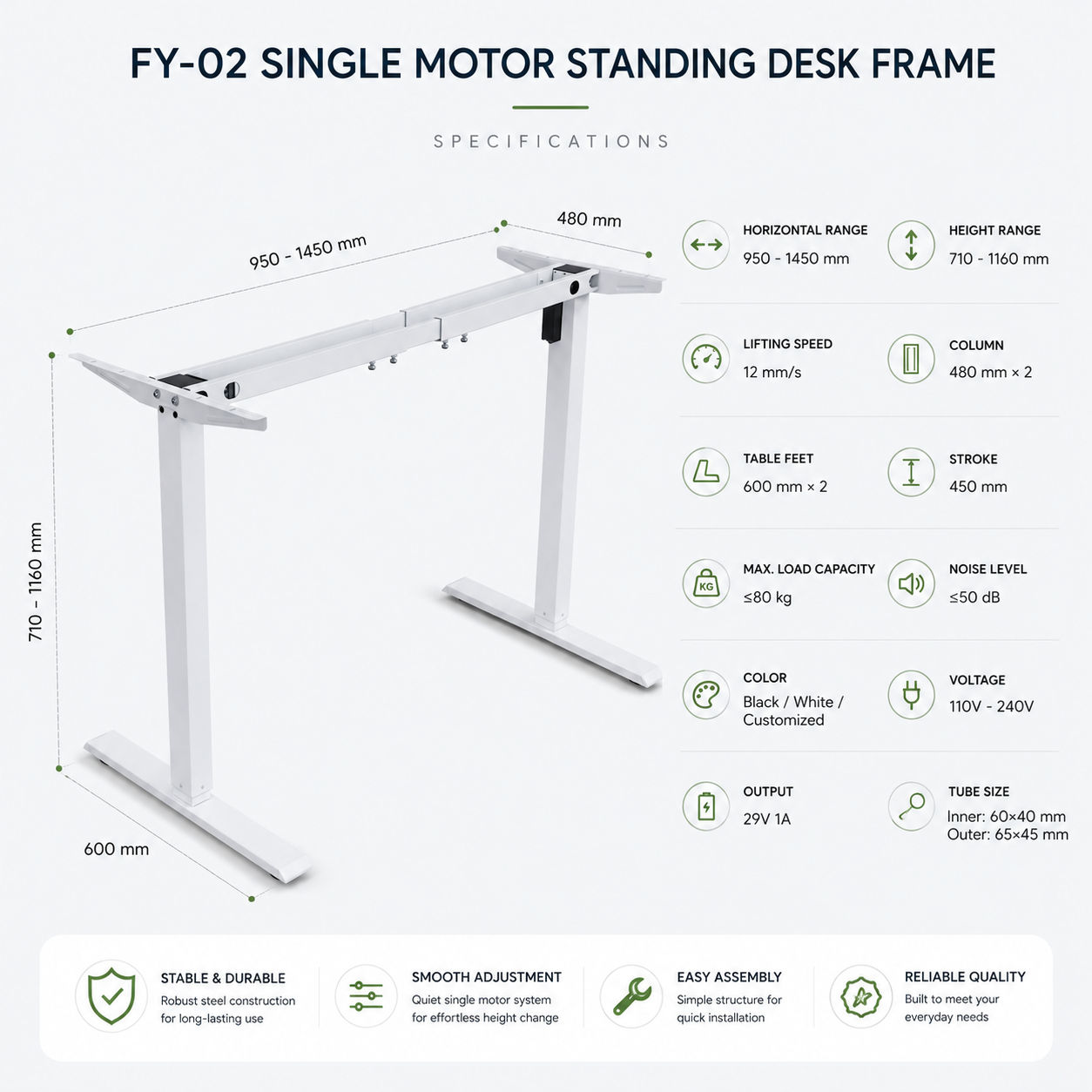

English
 |
FY-02
NANDI
94031000
1
710-1160 MM
80 KGS
12MM/S
＜50db
29V/1A
60*40mm,65*45mm
Telescopic 2-stage frame
Black, White, Grey, Customized
100*60cm, 120*60cm,140*60cm,160*80cm
Particle board
15mm or 18mm
4 Memory
YES
YES
ISO, CE, FCC,UL,RoHS
Package, Label, Assembling Instructions etc.
50 PCS
Nandi supplies electric sit stand desk solutions for office furniture brands, distributors, importers, retailers and commercial workspace projects.
Our product range includes single-motor, dual-motor, two-stage, three-stage and L-shaped heightadjustable desk systems. Buyers can select complete desks, frame-only solutions, controllers, lifting columns and customized packaging according to their target market.
Whether you are developing an entry-level retail collection, upgrading a commercial office furniture range or sourcing a private-label electric standing desk, our team can help you compare configurations and build a product specification suitable for your customers.
Available solutions include:
Single-motor sit stand desks
Dual-motor sit stand desks
Two-stage and three-stage lifting columns
L-shaped electric standing desks
Commercial sit stand workstations
Frame-only and complete-desk supply
OEM and private-label manufacturing
Custom colors, controllers and packaging
Bulk orders for distributors and office projects
Request a quotation, product catalog or model comparison sheet to begin your sourcing project.
Different markets require different combinations of price, stability, lifting range, motor configuration and control functions. Our sit stand desk collection is organized to help buyers select the right product for each sales channel.
A single-motor sit stand desk is designed for cost-sensitive retail programs, home offices, student workspaces and compact office environments.
The motor transfers power through the desk frame to raise and lower both lifting columns. This structure reduces component complexity and helps control purchasing cost.
A single-motor model can be suitable for:
Entry-level office furniture collections
Home office retail programs
E-commerce product ranges
Compact desktop sizes
Student and apartment workspaces
Price-sensitive distribution markets
Buyers should compare the lifting capacity, operating noise, frame width, height range and stability before selecting a single-motor model.
A dual-motor sit stand desk uses one motor for each lifting column. This configuration normally provides stronger lifting performance, smoother synchronization and better support for larger desktop sizes.
Dual-motor models are commonly selected for:
Corporate office projects
Premium retail collections
Multi-monitor workstations
Executive offices
Commercial workspace installations
Higher-capacity desk applications
For buyers targeting medium-to-high-end markets, a dual-motor electric sit stand desk can provide a stronger balance between performance, stability and market positioning.
A two-stage desk column contains two telescoping sections. It is often used for standard office height ranges and cost-effective commercial products.
Two-stage models are commonly suitable for:
Standard adult users
General office workstations
Entry-level commercial projects
Retail and wholesale programs
Conventional seated and standing use
The final suitability depends on the actual minimum and maximum heights of each model.
A three-stage lifting column contains three telescoping sections and normally provides a wider height adjustment range.
This configuration can accommodate a broader range of users and is often selected for premium ergonomic office furniture.
Three-stage models are suitable for:
Markets requiring an extended height range
Taller or shorter users
Premium office furniture collections
Executive workstations
Commercial projects with diverse users
Products positioned above entry-level desk systems
An L-shaped sit stand desk provides a larger work surface for corner offices, design studios, trading environments and multi-monitor setups.
Depending on the structure, an L-shaped frame may use two or three motors to control multiple lifting columns.
Typical applications include:
Corner office workstations
Financial trading desks
Engineering and design offices
Gaming and content creation setups
Multi-monitor commercial workspaces
Executive office projects
For brands and furniture manufacturers that source desktops separately, a sit stand desk frame provides greater flexibility in material, size, finish and packaging.
Frame-only supply can reduce duplication when buyers already have local desktop production or established panel suppliers.
Available frame configurations may include:
Single-motor frames
Dual-motor frames
Two-stage columns
Three-stage columns
L-shaped frames
Adjustable-width crossbars
Different controller options
Custom frame colors
A sit stand desk is a height-adjustable workstation that allows the user to alternate between seated and standing working positions.
An electric sit stand desk uses a motorized lifting system, telescoping columns, a control box and a handset to raise or lower the desktop. The user can adjust the working height by pressing the controller or selecting a saved height preset.
A complete electric height-adjustable desk normally includes:
Lifting columns
Motors
Crossbar or support structure
Feet
Control box
Hand controller
Power cable
Fasteners
Desktop or desktop support brackets
The exact structure depends on the motor configuration and desk design.
An electric sit stand desk adjusts through a motorized system. A manual desk normally uses a hand crank, pneumatic mechanism or another non-electric lifting method.
Electric systems are generally preferred when buyers require:
Faster height adjustment
One-touch operation
Memory presets
Digital height display
Anti-collision protection
Higher-end product positioning
Easier daily adjustment
Manual systems may be suitable for markets focused on lower cost, simple operation or locations without convenient access to power.
The most suitable model depends on the target user, desktop dimensions, load requirements, sales channel and price positioning.
Configuration | Main Characteristics | Recommended Applications |
|---|---|---|
Single motor, two stage | Cost-effective structure and standard height range | Entry-level retail, home office and compact desks |
Single motor, three stage | Wider height range with cost control | Mid-range home office and ergonomic retail |
Dual motor, two stage | Improved lifting performance and stability | Commercial offices and medium-to-high-end retail |
Dual motor, three stage | Wider adjustment range and stronger market positioning | Premium offices, distributors and project furniture |
Triple motor Lshaped | Large work surface and multi-column support | Corner offices, trading, design and multi-monitor use |
Frame-only solution | Flexible desktop sourcing and customization | Furniture brands, importers and local panel suppliers |
The comparison table should be combined with exact technical specifications for each available model.
Recommended product data includes:
Minimum height
Maximum height
Frame width
Recommended desktop dimensions
Maximum load
Lifting speed
Operating noise
Number of motors
Number of column stages
Controller type
Available colors
Packing dimensions
Net and gross weight
Warranty period
A product should not be selected only by appearance. B2B buyers should compare mechanical structure, target market, technical data, packaging and long-term support.
An entry-level e-commerce product may prioritize competitive cost, simple assembly and compact packaging.
A commercial office project may prioritize stability, durability, safety features, spare-parts support and consistent batch production.
A premium retail product may require:
Three-stage columns
Dual motors
Memory controller
USB charging
Lower operating noise
Higher load capacity
Premium powder coating
Retail-ready packaging
Single-motor desks are generally suitable for cost-sensitive programs and smaller desktop applications.
Dual-motor desks are generally selected for stronger lifting performance, larger desktops and commercial positioning.
L-shaped desks may require additional motors depending on the number and arrangement of lifting columns.
When comparing motor systems, buyers should ask for:
Rated load
Maximum load
Lifting speed
Noise level
Motor synchronization method
Overload protection
Duty cycle
Temperature protection
Cycle testing information
The minimum and maximum desk heights determine which users can work comfortably.
A model intended for a broad commercial market should provide a height range that supports both seated and standing use for different users.
Three-stage columns commonly provide a wider adjustment range than two-stage columns, but the exact specification must be checked by model.
For international product pages, show measurements in both metric and imperial units:
Millimeters and inches
Kilograms and pounds
Millimeters per second and inches per second
The required load depends on the desktop material and equipment placed on the desk.
Potential loads include:
Desktop panel
Monitor or multiple monitors
Monitor arms
Desktop computer
Laptop
Audio equipment
Office accessories
Storage accessories
Do not select a desk only according to the maximum promotional load. Buyers should also consider dynamic lifting performance and stability while the desk is moving.
The desk frame must be compatible with the intended desktop width and depth.
Buyers should confirm:
Minimum compatible desktop width
Maximum compatible desktop width
Recommended desktop depth
Desktop thickness
Frame extension range
Side overhang
Front and rear overhang
Mounting-hole requirements
For private-label projects, the frame and desktop should be tested together before mass production.
Different sales channels require different product and packaging strategies.
For e-commerce:
Compact carton dimensions
Easy installation
Clear manuals
Strong internal packaging
Replacement-part availability
High-quality product images
Installation video support
For distributors:
Stable product availability
Multiple model levels
Spare parts
Marketing materials
Mixed-container planning
Private-label options
For supermarkets and retail chains:
Retail-ready cartons
Barcode and label customization
Display samples
Standardized product specifications
Consistent color and finish
Reliable delivery planning
For office projects:
Commercial-grade stability
Project quotations
Installation support
Batch consistency
Customized dimensions
Long-term parts availability
Single-motor and dual-motor products serve different price levels and applications.
Lower component cost
Suitable for entry-level markets
Simpler product positioning
Appropriate for compact desks
Competitive for online retail
Suitable for standard home office use
One motor supports each lifting column
Suitable for larger desktops
Stronger commercial positioning
Improved synchronized movement
Appropriate for higher load requirements
Suitable for multi-monitor setups
Better fit for office projects
Choose a single-motor model when the main priority is cost control and the product is intended for standard home office use.
Choose a dual-motor model when the priorities are lifting performance, larger desktop compatibility, stronger market positioning and commercial office use.
The final decision should be based on verified specifications rather than motor quantity alone.
The number of column stages affects the height range, appearance and product positioning.
Two-stage columns normally offer:
Standard adjustment range
Simpler structure
Competitive cost
Suitability for mainstream office users
Good positioning for entry-level and mid-range products
Three-stage columns normally offer:
Wider adjustment range
Lower minimum height
Higher maximum height
Broader user compatibility
Premium ergonomic positioning
Greater flexibility for commercial office projects
Product Type | Suggested Market Position |
|---|---|
Single motor, two stage | Entry-level |
Single motor, three stage | Entry-to-mid range |
Dual motor, two stage | Mid-range commercial |
Dual motor, three stage | Premium office and retail |
Triple motor L-shaped | Professional and specialized applications |
Actual positioning also depends on the controller, finish, packaging, desktop and certification requirements.
A high-quality product page should explain what each specification means, not only display numbers.
The height range determines the seated and standing positions supported by the desk.
For each model, display:
Minimum frame height
Maximum frame height
Height with desktop installed
Measurement tolerance
Recommended user-height range
Display both static and dynamic load information when available.
The dynamic load is particularly relevant because it indicates how much weight the desk can raise and lower during normal operation.
The specification should state whether the listed capacity includes the desktop.
Lifting speed affects the time required to move between sitting and standing positions.
The final speed can vary depending on:
Applied load
Input voltage
Controller settings
Motor system
Ambient temperature
Noise level is important for shared offices, libraries, home offices and meeting areas.
Noise claims should be supported by a defined test method, including:
Test distance
Applied load
Room conditions
Measurement equipment
Test model
Avoid publishing unsupported noise claims.
A desk should remain stable throughout its adjustment range, especially near maximum height.
Stability is influenced by:
Column dimensions
Foot length
Crossbar structure
Desktop dimensions
Frame width
Load distribution
Floor conditions
Manufacturing tolerances
For commercial buyers, provide a maximum-height stability video or test summary where available.
Low standby power can support energy-efficiency positioning for large office installations.
The product specification should distinguish between:
Active power consumption
Standby power consumption
Sleep-mode power consumption
The duty cycle defines how long the motor system should operate before resting.
This information helps protect the motor and control system during installation, testing and normal use.
An anti-collision system can detect resistance while the desk is moving and stop or reverse the desk.
The sensitivity and response method may vary by controller.
Buyers should confirm:
Number of sensitivity levels
Upward detection
Downward detection
Reset method
Default factory setting
Overload protection helps stop the desk when the applied load exceeds the system limit.
The product manual should explain the error code and reset procedure.
A child-lock function can prevent unintended operation in home offices, schools or shared spaces.
Memory controllers allow users to save preferred seated and standing heights.
Common controller options include:
Basic up-and-down controller
Digital display controller
Two-memory controller
Three-memory controller
Four-memory controller
USB charging controller
App-enabled controller
Voice-control-compatible system
Soft start and stop functions reduce sudden movement when the desk begins or finishes adjusting.
This can improve the perceived quality of the product and help keep desktop items stable.
Performance claims should be supported by clear and verifiable testing information.
The desk is tested under a defined stationary load to evaluate structural strength and deformation.
A useful test record should include:
Product model
Applied load
Test duration
Desktop dimensions
Height position
Test result
The desk raises and lowers a defined load through repeated operation.
The report should state:
Dynamic load
Number of cycles
Adjustment range
Operating speed
Test result
A cycle test evaluates long-term motor, column and control-system performance.
For each claim, specify:
Number of completed cycles
Applied load
Rest interval
Test environment
Pass criteria
Applicable product model
The anti-collision test should evaluate how the desk responds when it encounters an obstacle.
The result may include:
Detection sensitivity
Reversal distance
Obstacle position
Test load
Controller setting
Export packaging may be evaluated through:
Carton drop testing
Vibration testing
Compression testing
Edge and corner protection checks
Internal component movement checks
Packaging design should be confirmed according to product weight, destination and sales channel.
Nandi provides configurable sit stand desk solutions for buyers developing their own product lines.
Available frame customization may include:
Black, white, gray or custom colors
Powder coating requirements
Two-stage or three-stage columns
Single-motor or dual-motor systems
Adjustable frame width
Different foot lengths
Custom desktop brackets
Alternative controller placement
Desktop options can be discussed according to project requirements.
Potential variables include:
Desktop width
Desktop depth
Desktop thickness
Edge shape
Corner radius
Surface finish
Material
Color
Pre-drilled holes
Cable-management openings
Availability depends on the selected product and order volume.
Controller options may include:
Basic handset
Memory handset
Digital display
USB-A charging
USB-C charging
Child lock
Sit-stand reminder
App control
Voice control
Custom logo
Custom interface design
Private-label support may include:
Product logo
Controller logo
Carton printing
Instruction manual
Barcode label
Rating label
Color label
Model number
Product photography
Marketing material
All artwork and labeling should be confirmed before mass production.
Packaging can be developed for:
B2B bulk shipment
Retail stores
E-commerce delivery
Supermarket programs
Project installation
Mixed-container orders
Packaging options may include custom cartons, internal foam, molded pulp, corner protection, accessory boxes and printed installation guides.
A reliable sit stand desk supplier should control the product from raw material to final packaging.
Incoming materials should be checked for:
Steel specification
Tube dimensions
Surface quality
Motor components
Control-system components
Fasteners
Desktop material
Packaging material
Production stages may include:
Cutting
Stamping
Drilling
Bending
Robotic welding
Grinding
Surface preparation
Powder coating affects corrosion resistance, surface appearance and color consistency.
Quality checks may include:
Surface cleanliness
Coating thickness
Color consistency
Adhesion
Scratch resistance
Visible defects
During assembly, the factory should verify:
Motor installation
Column movement
Wiring
Control box connection
Controller operation
Fastener torque
Frame alignment
Each finished system should be checked for:
Upward movement
Downward movement
Reset operation
Memory function
Error codes
Noise
Synchronization
Anti-collision response
Visual defects
Final inspection should confirm:
Product model
Color
Quantity
Accessories
Manuals
Labels
Carton marks
Packaging condition
Electric height-adjustable desks can be supplied for employee workstations, private offices and executive spaces.
Commercial projects often require:
Standardized dimensions
Consistent color
Cable-management compatibility
Batch delivery
Replacement parts
Installation guidance
Open offices benefit from coordinated desk specifications and consistent controller placement.
Buyers should also consider:
Noise level
Desk spacing
Screen-panel compatibility
Power-cable routing
Shared accessories
Home office products often prioritize:
Easy assembly
Compact packaging
Clear instructions
Modern appearance
Memory controller
Competitive retail price
Height-adjustable desks may be used in teacher offices, training rooms, libraries and specialized learning environments.
The required product should be selected according to load, safety, height range and frequency of adjustment.
Trading, programming, design and editing setups may require:
Higher load capacity
Larger desktop compatibility
Strong frame stability
Dual- or multi-motor systems
Reinforced desktop support
Cable-management accessories
Large retail buyers often require:
Stable product specification
Retail packaging
Product labels
Barcodes
Consistent delivery
Display samples
After-sales replacement parts
Marketing images and videos
Certification requirements vary according to destination, electrical system and buyer requirements.
Before ordering, confirm:
Target country
Product model
Controller and power configuration
Plug type
Voltage
Required test standards
Required material compliance
Retailer-specific testing requirements
The product page should list only certifications that apply to the specific model.
For each certificate or report, show:
Certificate name
Applicable model
Testing organization
Report or certificate number
Issue date
Expiration date, where applicable
Downloadable document
Do not display certification logos without identifying the applicable product.
MOQ and production schedules depend on the product configuration and customization level.
Samples can be used to confirm:
Product structure
Color
Height range
Motor performance
Controller function
Packaging
Desktop compatibility
Sample specifications should be approved before a bulk order.
The MOQ may vary according to:
Standard or customized product
Frame-only or complete desk
Color
Desktop requirement
Packaging
Logo
Controller
Certification requirement
Standard models generally provide more flexible purchasing conditions than deeply customized models.
Production time depends on:
Order quantity
Material availability
Custom color
Desktop production
Packaging design
Label approval
Certification
Peak-season capacity
A confirmed production schedule should be issued after the final specification and deposit are approved.
For accurate container planning, provide:
Carton dimensions
Gross weight
Packing method
Units per carton
20 GP loading quantity
40 GP loading quantity
40 HQ loading quantity
Pallet or non-pallet loading
Loading quantities should be calculated for each model rather than estimated from product appearance.
To support product selection and internal approval, buyers can request:
Sit stand desk catalog
Model comparison sheet
Technical data sheet
Installation manual
Dimension drawing
Packaging drawing
Product images
Product videos
Controller manual
Troubleshooting guide
Certification documents
Test report summary
OEM customization guide
Warranty information
Spare-parts list
Container-loading data
Providing these resources helps distributors, brands and project buyers evaluate the product before placing an order.
A: NANDI FY-02 sit stand desk height 710-1160mm.
A: NANDI FY-02 loading capacity 80kgs.
A: NANDI FY-02 speed is fast, 12mm/s.
A: NANDI FY-02 noise≤50db.
A: Yes. Frame-only solutions are suitable for buyers that produce or source desktops locally. Confirm the compatible desktop dimensions before ordering.
A: Standard colors commonly include black and white. Other colors may be available depending on the order quantity and powder-coating requirements.
A: Private-label options may include logos on the frame, controller, product label, manual and carton. Logo position and artwork should be approved before production.
A: 12060cm, 14060cm, 160*80cm customized
A: Certification availability depends on the selected model and destination market. Buyers should confirm the required standards before ordering.
A: MOQ varies according to the model, color, desktop, packaging and branding requirements. Standard products generally have more flexible MOQs than custom products.
A: Sample orders can be arranged to verify the structure, motor performance, controller, color and packaging before bulk production.
A: 30 DAYS Lead time depends on the order quantity and customization. A final schedule should be confirmed after the specification, artwork, packaging and payment terms are approved.
A: Spare-parts support can include motors, controllers, control boxes, cables, hardware and other components according to the product and warranty agreement.
A: Compare the desk’ s height range, dynamic load, stability, noise, controller, certification, packaging, warranty and long-term parts availability. Project buyers should also confirm batch consistency and installation requirements.
Discuss an OEM Project
