DY-01
NANDI
94031000
695 - 1065 mm
65 × 45，60 × 40 mm
Square Tube
Black, White, Walnut Customized
800 × 400 mm （2PCS Desktop, 3PCS Gas Spring）
Particle board
15mm or 18mm
YES
ISO, CE, FCC,UL,RoHS
Package, Label, Assembling Instructions etc.
100 PCS
The Nandi DY-01 Lifting Pneumatic Standing Desk is a compact height-adjustable workstation featuring a two-piece desktop design, pneumatic lifting mechanism and foldable desktop configuration.
It uses three gas springs to support height adjustment and desktop movement. The desk provides an adjustable height range of 695–1065 mm, giving it a total vertical adjustment range of 370 mm.
The DY-01 features two separate desktop panels: a 550 × 400 mm main desktop and a 400 × 250 mm secondary desktop. The desktop panels are approximately 15 mm thick.
Its frame is available in white or black.
Pneumatic height-adjustment system
Three gas-spring mechanism
695–1065 mm adjustable height range
370 mm total vertical adjustment
Two-piece desktop design
550 × 400 mm main desktop
400 × 250 mm secondary desktop
15 mm desktop thickness
Flipping desktop design
Lifting function
Foldable storage design
Approximately 720 × 400 mm base dimensions
60 × 40 mm inner column
65 × 45 mm outer column
White or black frame options
No electric lifting motor required
Specification | Details |
|---|---|
Brand | Nandi |
Model | DY-01 |
Product type | Pneumatic height-adjustable standing desk |
Adjustment mechanism | Gas-spring pneumatic lift |
Number of gas springs | 3 |
Minimum height | 695 mm / 27.4 in |
Maximum height | 1065 mm / 41.9 in |
Total height adjustment | 370 mm / 14.6 in |
Desktop configuration | Two-piece desktop |
Main desktop dimensions | 550 × 400 mm / 21.7 × 15.7 in |
Secondary desktop dimensions | 400 × 250 mm / 15.7 × 9.8 in |
Desktop thickness | 15 mm / 0.59 in |
Base dimensions | Approx. 720 × 400 mm / 28.3 × 15.7 in |
Inner column size | 60 × 40 mm / 2.36 × 1.57 in |
Outer column size | 65 × 45 mm / 2.56 × 1.77 in |
Base tube dimension shown | 30 mm / 1.18 in |
Frame colors | White or black |
Desktop functions | Flipping, lifting and foldable storage |
Electric lifting motor | No |

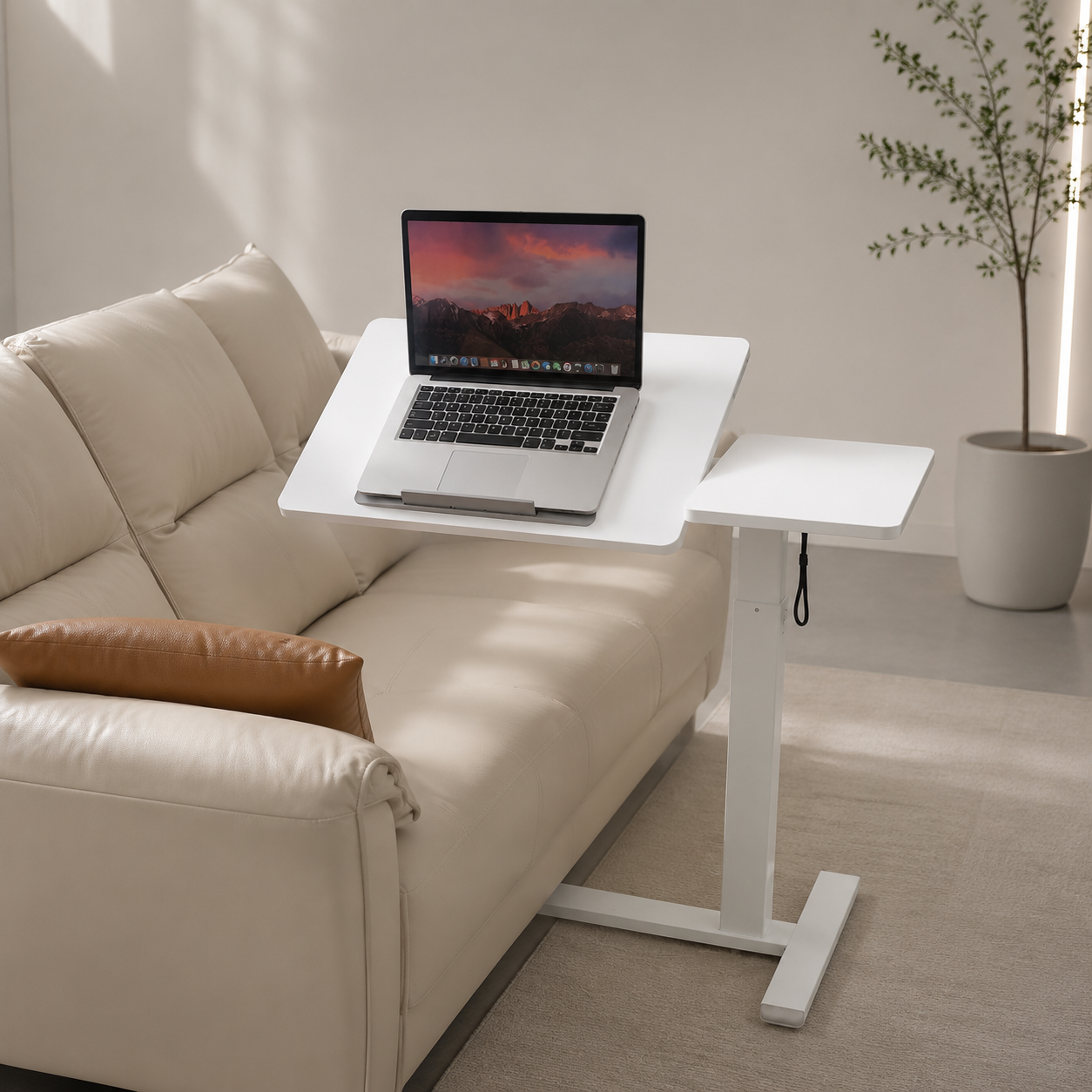

The Nandi DY-01 uses a two-piece desktop configuration rather than a single continuous work surface.
The larger main desktop measures 550 × 400 mm, equivalent to approximately 21.7 × 15.7 inches.
The smaller secondary desktop measures 400 × 250 mm, equivalent to approximately 15.7 × 9.8 inches.
This two-panel arrangement provides separate working surfaces within a compact workstation structure.
The main surface can be used for equipment such as a laptop, documents, books or a tablet, while the secondary surface can provide additional space for a keyboard, mouse or other compact workstation accessories.
Buyers should compare the dimensions of their intended equipment with both desktop surfaces before selecting the product.
The main desktop of the Nandi DY-01 measures:
550 × 400 mm
or approximately:
21.7 × 15.7 inches
This larger panel functions as the primary working area of the desk.
Its compact dimensions make it suitable for space-conscious workstation arrangements where a full-size conventional desktop may not be required.
The second desktop panel measures:
400 × 250 mm
or approximately:
15.7 × 9.8 inches
This secondary surface provides additional workspace alongside the main desktop.
Depending on the workstation configuration, it can be considered for a keyboard, mouse, documents, tablet or other compact accessories.
Both desktop sections have a specified thickness of approximately 15 mm, equivalent to approximately 0.59 inches.
The relatively slim desktop profile helps maintain the compact overall appearance of the DY-01.

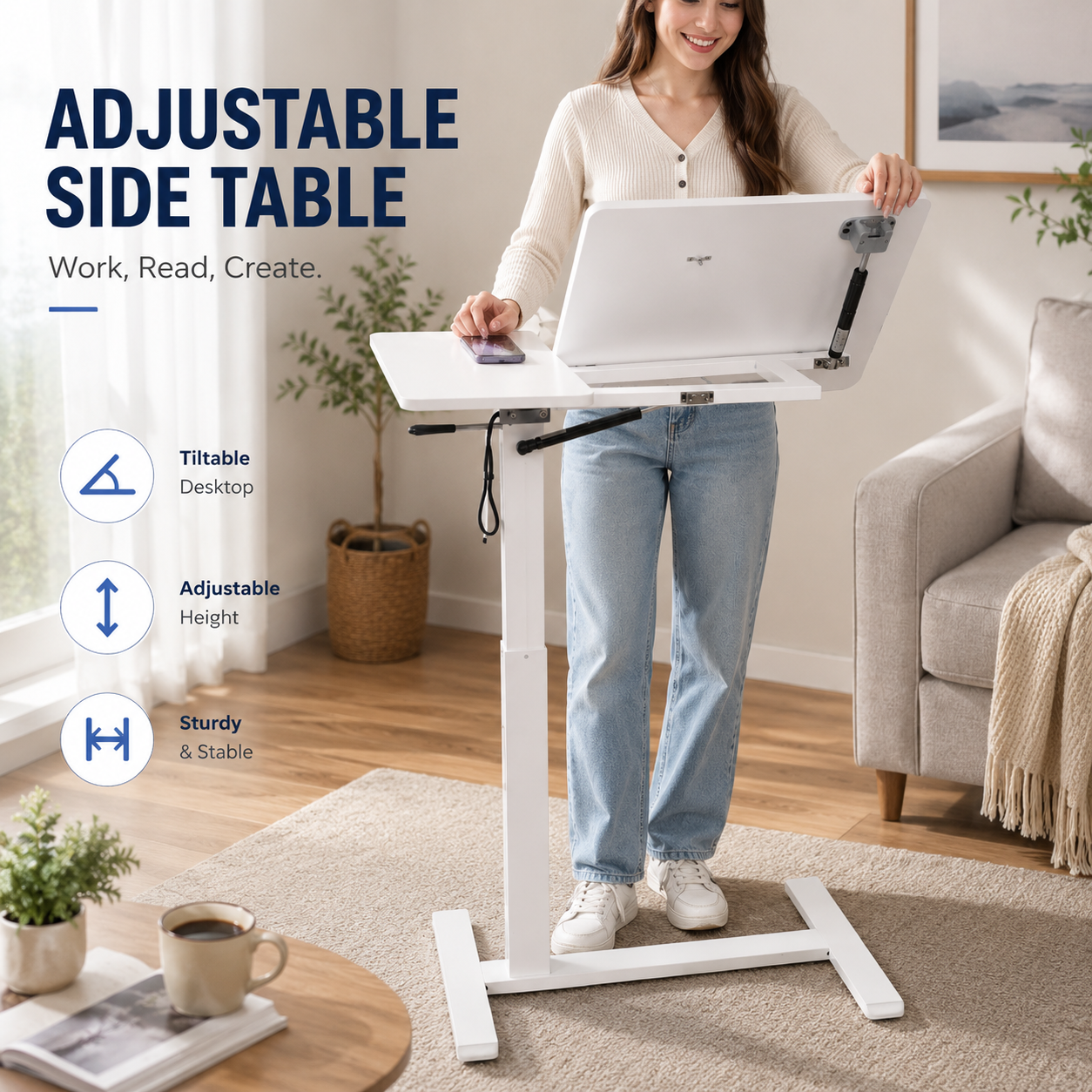

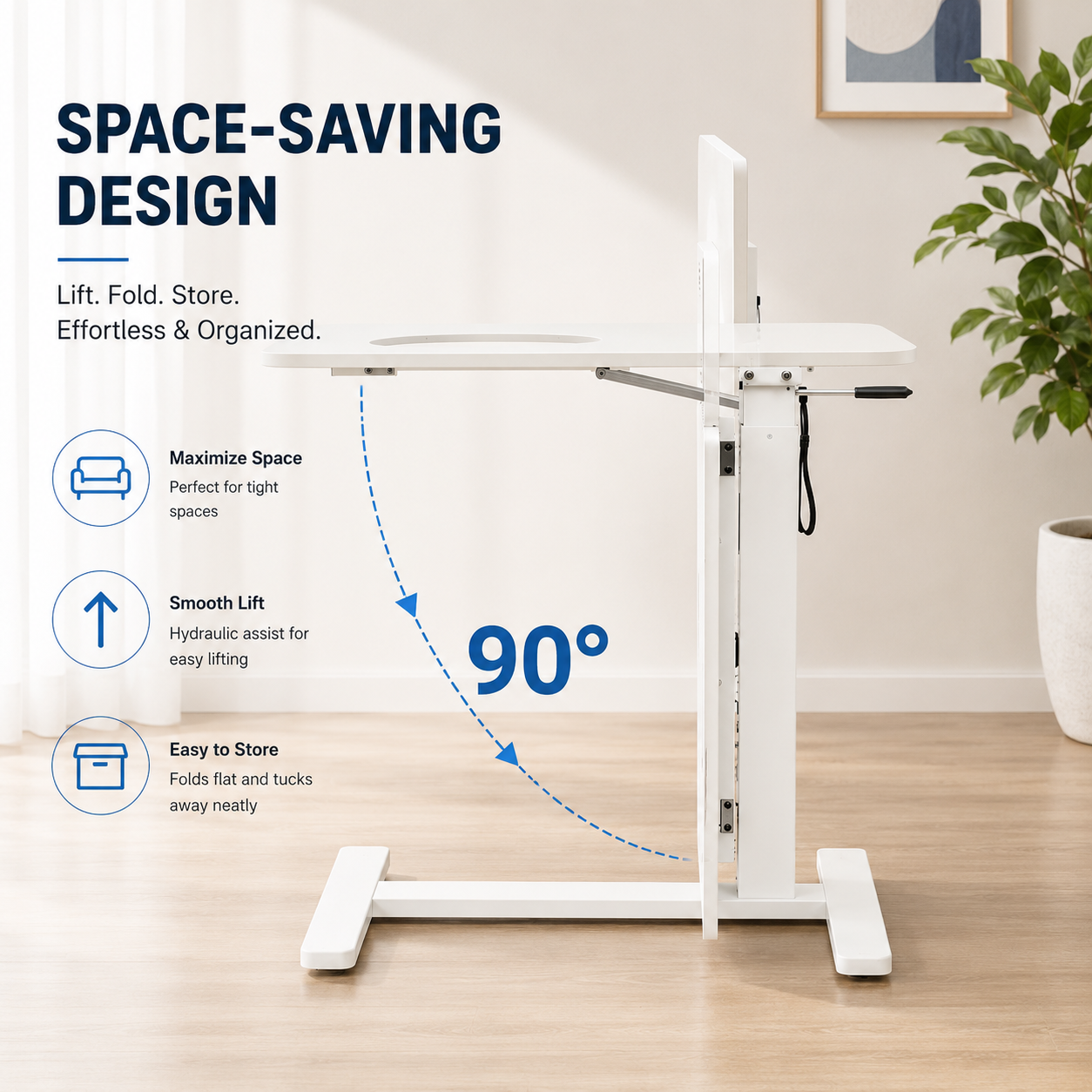

The Nandi DY-01 incorporates a flipping desktop function.
The main desktop section can be positioned at an angle rather than remaining permanently horizontal.
This configuration may be useful for applications such as reading, writing, drawing or working with materials that benefit from an inclined surface.
The exact operating angle and adjustment method should be used according to the product instructions supplied with the desk.

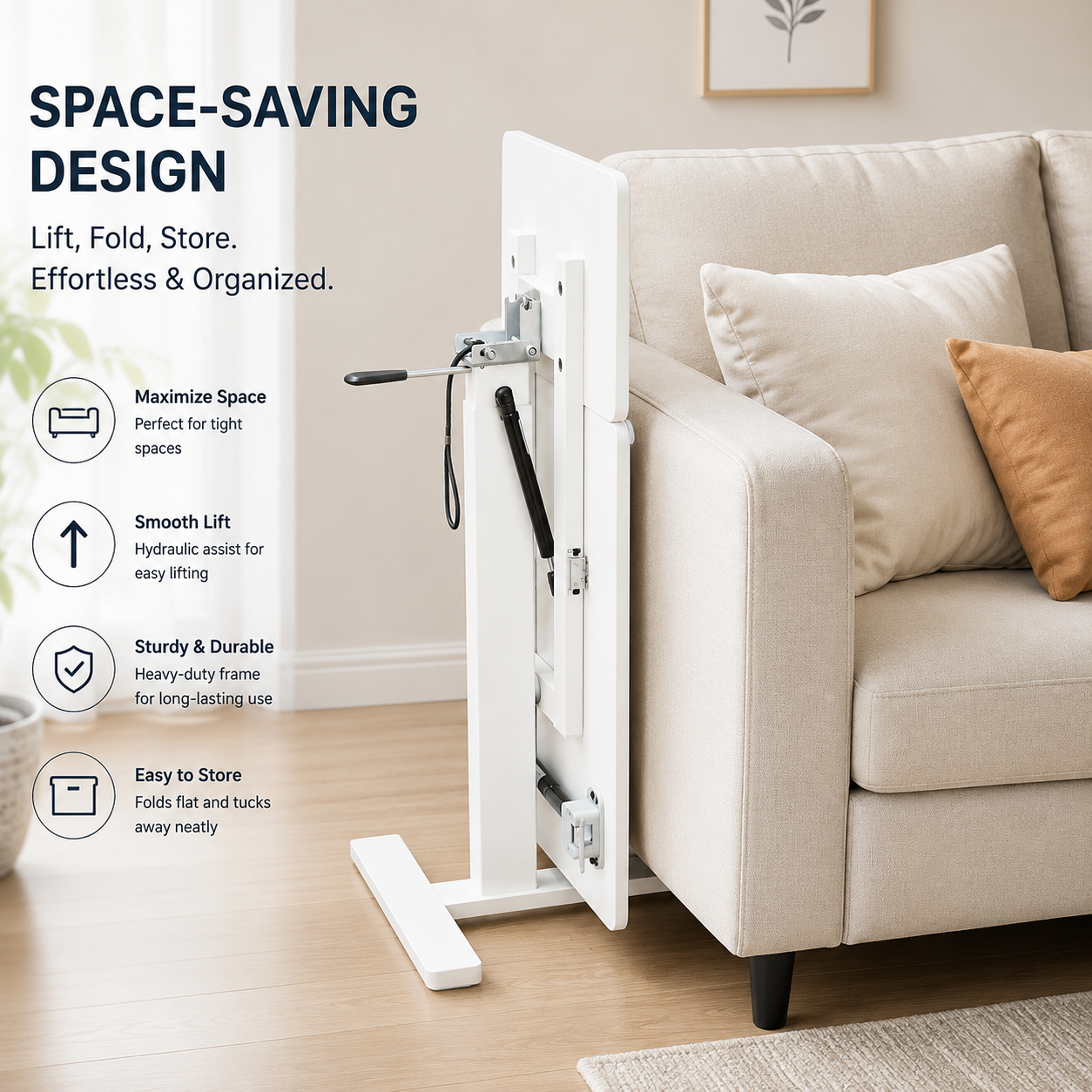

In addition to height adjustment, the DY-01 is described as featuring Flipping, Lifting & Foldable Storage functions.
The foldable configuration can help reduce the amount of space occupied by the desktop structure when the workstation is not being used.
This may make the DY-01 suitable for environments where equipment needs to be stored efficiently or workspace arrangements change regularly.
The Nandi DY-01 adjusts from a minimum desktop height of 695 mm to a maximum height of 1065 mm.
This provides a total vertical adjustment range of 370 mm.
Height Measurement | Metric | Imperial |
|---|---|---|
Minimum desktop height | 695 mm | 27.4 in |
Maximum desktop height | 1065 mm | 41.9 in |
Total adjustment range | 370 mm | 14.6 in |
The adjustable-height design allows users to position the desktop at different working levels.
Before purchase, buyers should compare the 695–1065 mm height range with their preferred seated and standing working positions.
The Nandi DY-01 uses three gas springs within its pneumatic adjustment system.
Gas-assisted mechanisms help support the movement of the desk without requiring an electric lifting motor.
The DY-01 therefore provides mechanical height and desktop adjustment without relying on an electronic control box, motorized lifting columns or digital handset.
The three gas springs support the desk's combination of lifting and desktop movement functions.
The desk should always be assembled and operated according to the manufacturer's instructions.
The Nandi DY-01 uses a telescoping support column as part of its height-adjustable structure.
The column specifications are:
Column Section | Metric Dimensions | Imperial Dimensions |
|---|---|---|
Inner column | 60 × 40 mm | 2.36 × 1.57 in |
Outer column | 65 × 45 mm | 2.56 × 1.77 in |
The smaller inner column moves within the larger outer section as the desk height is adjusted.
This structure supports the 370 mm vertical adjustment range while maintaining a compact single-column workstation design.

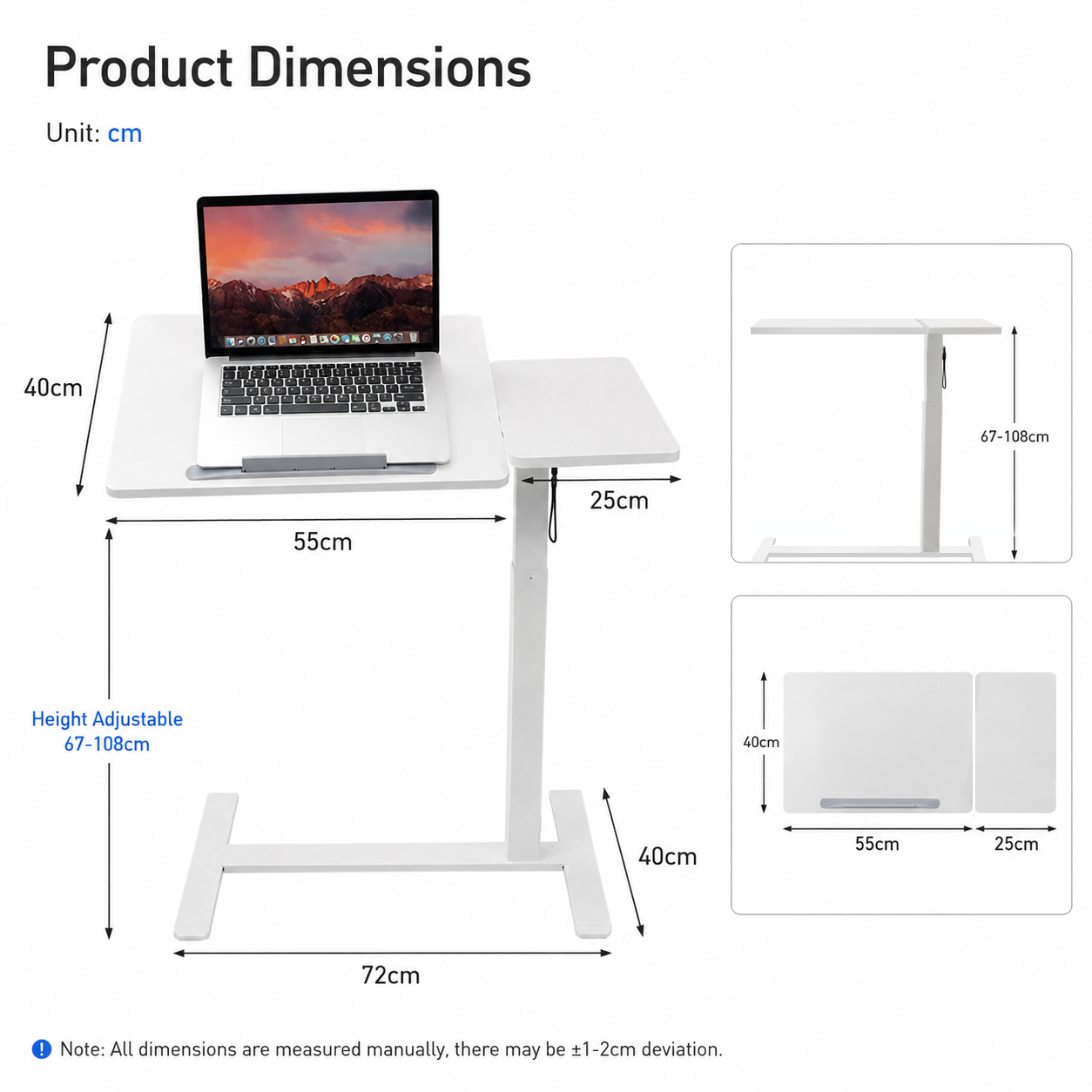

The DY-01 combines two work surfaces with a compact height-adjustable frame.
Dimension | Metric | Imperial |
|---|---|---|
Main desktop width | 550 mm | 21.7 in |
Main desktop depth | 400 mm | 15.7 in |
Secondary desktop dimension | 400 mm | 15.7 in |
Secondary desktop depth | 250 mm | 9.8 in |
Desktop thickness | 15 mm | 0.59 in |
Base length | Approx. 720 mm | 28.3 in |
Base depth | Approx. 400 mm | 15.7 in |
Minimum desktop height | 695 mm | 27.4 in |
Maximum desktop height | 1065 mm | 41.9 in |
Total height adjustment | 370 mm | 14.6 in |
Inner column | 60 × 40 mm | 2.36 × 1.57 in |
Outer column | 65 × 45 mm | 2.56 × 1.77 in |
Base tube dimension shown | 30 mm | 1.18 in |
Before purchase, users should compare these dimensions with their available floor area, equipment dimensions and required working height.
The lower frame shown in the DY-01 product drawing measures approximately 720 × 400 mm, equivalent to approximately 28.3 × 15.7 inches.
The frame uses a compact T-style support structure around the central lifting column.
A 30 mm dimension is also shown for the lower base component in the technical drawing.
The compact base design helps make the DY-01 suitable for environments where available floor area is limited.
The Nandi DY-01 is available with two frame color options:
White and Black.
The product can therefore be presented as Nandi DY-01 Pneumatic Standing Desk – White Frame or Nandi DY-01 Pneumatic Standing Desk – Black Frame.
These neutral frame finishes allow the desk to fit into a variety of office, educational and home-working environments.
The Nandi DY-01 combines a two-piece desktop, compact single-column frame, pneumatic height adjustment and foldable structure.
Its design can be considered for home offices, study spaces, classrooms, training rooms, shared workspaces, consultation spaces, reception areas and compact laptop workstations.
The ability to adjust both height and desktop position can also provide additional flexibility for environments where the workstation needs to accommodate different tasks.
Actual suitability depends on equipment dimensions, required working height and available floor space.
The DY-01 provides two independent desktop surfaces instead of one large continuous desktop.
The 550 × 400 mm main desktop provides the larger primary working area, while the 400 × 250 mm secondary desktop provides an additional compact surface.
Separating the work surfaces can help organize different workstation equipment.
For example, the main desktop may be used for a laptop, documents or books, while the smaller panel may be used for a keyboard, mouse or other accessories.
The Nandi DY-01 does not require an electric lifting motor for its height-adjustment function.
Its three-gas-spring pneumatic system provides mechanical assistance for movement.
This means the lifting system does not depend on an electric lifting motor, electronic control box, digital height controller or electrical connection for height adjustment.
This configuration can be useful where a simple mechanical height-adjustable workstation is preferred.
The Nandi DY-01 may be suitable for buyers looking for a compact pneumatic standing desk, a two-piece desktop, a 550 × 400 mm primary work surface, a 400 × 250 mm secondary surface, a 695–1065 mm adjustable height range, three gas springs, a flipping desktop function and a foldable storage design.
It may also be considered where a non-electric height-adjustment mechanism and compact 720 × 400 mm lower frame are preferred.
A larger model may be more appropriate if the workstation requires several large monitors, extensive desktop storage, a wide continuous desktop, a maximum working height above 1065 mm, or a minimum working height below 695 mm.
The Nandi DY-01 is a compact pneumatic height-adjustable standing desk featuring two separate desktop panels, three gas springs, a flipping desktop function and a foldable design.
The Nandi DY-01 has two desktop panels.
The main desktop measures 550 × 400 mm, while the secondary desktop measures 400 × 250 mm.
The main desktop measures 550 × 400 mm, equivalent to approximately 21.7 × 15.7 inches.
The secondary desktop measures 400 × 250 mm, equivalent to approximately 15.7 × 9.8 inches.
The desktop thickness is approximately 15 mm, equivalent to 0.59 inches.
The Nandi DY-01 adjusts from 695 to 1065 mm, equivalent to approximately 27.4 to 41.9 inches.
The DY-01 provides a total height-adjustment range of 370 mm, or approximately 14.6 inches.
The Nandi DY-01 uses three gas springs.
No. The DY-01 uses a pneumatic gas-spring system instead of an electric lifting motor.
No. Its pneumatic lifting mechanism does not require electricity for height adjustment.
The product drawing identifies the DY-01 as having a flipping function, and the main desktop is shown in an inclined position.
Yes. The product specification describes the DY-01 as featuring Flipping & Lifting & Foldable Storage.
The inner tube measures 60 × 40 mm, while the outer tube measures 65 × 45 mm.
The base shown in the technical drawing measures approximately 720 × 400 mm, equivalent to approximately 28.3 × 15.7 inches.
The DY-01 is available with a white or black frame.
The 550 × 400 mm main desktop can be considered for compact laptop workstation arrangements, while the 400 × 250 mm secondary desktop provides additional space for accessories.
Buyers should compare their equipment dimensions with the available work surfaces before purchase.
Suitability depends on the user's preferred working height and equipment arrangement.
Buyers should compare their required seated and standing positions with the DY-01 adjustment range of 695–1065 mm and confirm that their intended equipment fits on the two desktop surfaces.
The Nandi DY-01 Pneumatic Standing Desk combines a 550 × 400 mm main desktop, a 400 × 250 mm secondary desktop, a 695–1065 mm adjustable height range and a three-gas-spring pneumatic mechanism.
Its two-piece desktop, flipping function, lifting system and foldable storage design provide a flexible configuration for compact workstation environments.
Available with a white or black frame, the DY-01 can be considered for home offices, study spaces, training areas, shared workspaces and other space-conscious applications.
Request a Quote for the Nandi DY-01
