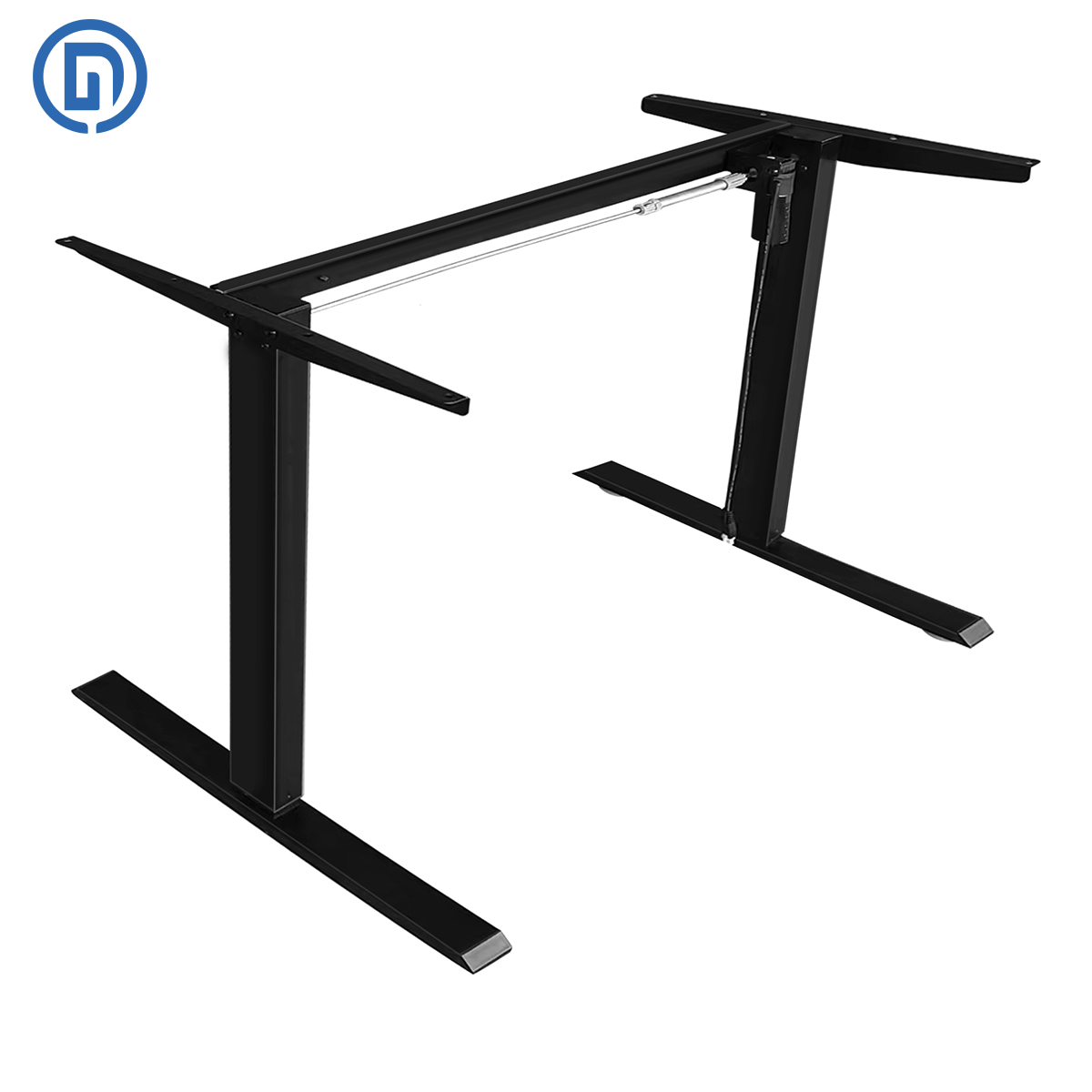

DK-02-1 Single Motor Single Beam Electric Standing Desk Frame (Fixed Beam, 2-Section Inverted)

The DK-02-1 Fixed Frame is simple and classic. The height-adjustable design provides greater legroom while ensuring the stability and durability of the table frame structure.
Click the "Inquire" Button above to get the choice guide.
  • DK-02-1

  • NANDI

Frame Color:
Installation Type of Desk Legs:
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

The DK-02-1  Single Motor Single Beam Electric Standing Desk Frame (2-Section Inverted) is the perfect entry-level solution for creating a healthier and more productive workspace. Designed with a sturdy single-motor lifting system, this desk frame provides smooth and reliable height adjustment from 710mm to 1160mm, allowing users to easily switch between sitting and standing throughout the day.


Its 2-section inverted leg design ensures both space efficiency and structural stability, making it an excellent choice for compact offices, home workstations, and study areas.

10016 (1)


Why Choose NANDI DK-02-1 Single Motor Single Beam Electric Standing Desk Frame?



1. Ergonomic Comfort & Height Flexibility:

The DK-02-1 electric standing desk frame enhances your workspace with infinitely adjustable desk height ranging from 27.65″ to 45.67″ tall. Enjoy seamless transition between sitting and standing work positions for more comfort and task productivity.

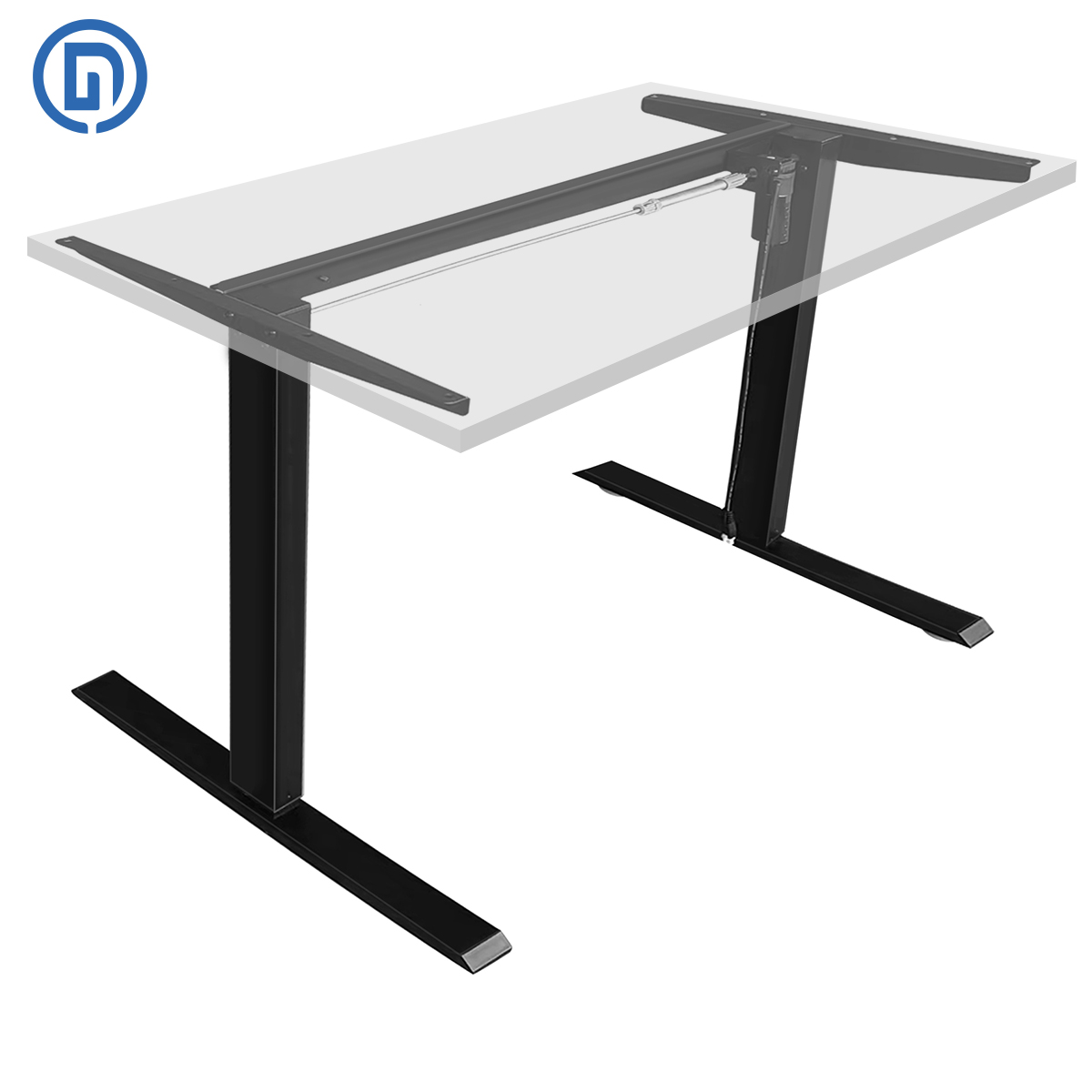

2. Choose Your Desktop:

The DK-02-1 standing desk frame offers three fixed-width specifications to fit a variety of desktop sizes. You can choose from desktops measuring 34.84 inches, 38.35 inches, or 41.22 inches in length to seamlessly integrate the standing desk frame with your office design or furniture.


3. Intelligent and Humanised Design:

The raising desk legs feature an intuitive control panel for quick height adjustment with 4 memory presets to save your favorite height settings.

The electric standing desk frame operates at a quiet less than 50 dB to ensure a peaceful environment without distraction. Anti-collision technology helps to avoid damage to the desk or furniture during operation.


4. Comfort and Efficiency for User:


Switching between sitting and standing positions throughout the day will help improve posture your comfort and improve efficiency


5.  Desgin for Durable and Stability:


Constructed from sturdy heavy-duty steel, the electric standing desk frame can securely hold up to 176 lbs of weight. The electric standing desk frame is backed by a limited 5-year warranty while the motor, controller, and parts are supported by a limited 3-year warranty to ensure long-lasting performance.


6.Hassle-Free Assembly:

Our standing desk legs can be assembled with ease thanks to detailed instructions and labeled hardware included. Feel free to contact our  China-based sales support team and technolgy support team. If you have any questions about standing desk installation or product selection.


Specification

Product NameDesk Frame
ModelDK-02-1
Number of motors1 motor
BeamFixed Beam
Beam Length885mm (34.84"), 974mm (38.35"), 1047mm (41.22")
Adjustable Height Range710mm-1160 mm (27.95"-45.67")
Side Beam Length495mm(19.49")
Feet Length600mm (23.62")
Column Type2-Section Lifting Height Adjustable, Inverted
Inner Column Diameter of Desk Leg40mmX60mm
Outer Column Diameter of Desk Leg45mmX65mm
Column MaterialCold-rolled steel
Load≤80 kg
Noise≤50 db
ColorWhite / Black
Speed20 mm/s
Stroke450 mm
VoltageAC 110 -240 V
Output29V/ 1A
StyleClassic
Room TypeOffice, Home Office, Study Room, Living Room
